Circuit Diagram

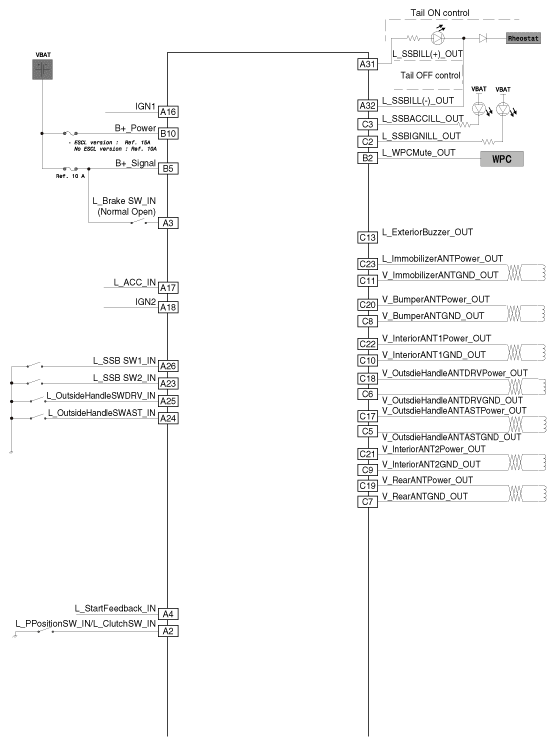

Fig 1: Smart Key Unit Circuit (1 Of 2)

G11825042

Courtesy of KIA MOTORS AMERICA, INC.

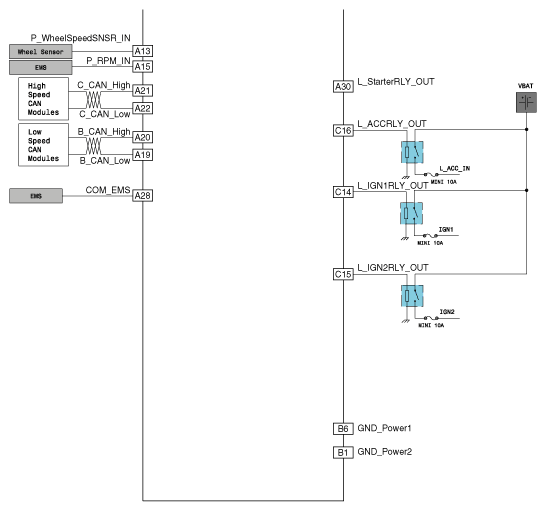

Fig 2: Smart Key Unit Circuit (2 Of 2)

G11825043

Courtesy of KIA MOTORS AMERICA, INC.
