Trunk Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear transverse trim.

    (Refer to TRUNK TRIM - OPTIMA (EXCEPT HEV) Body )

  3. Remove the trunk antenna (B) after disconnect the connector (A) and loosening the mounting nuts.

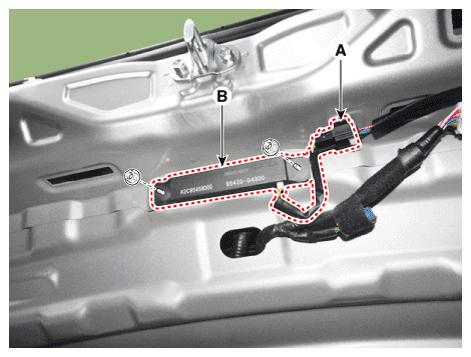

Fig 1: Locating Trunk Antenna And Connector With Mounting Nuts
G11825049Courtesy of KIA MOTORS AMERICA, INC.
