Monitor GDS Data

  1. Connect Data Link Connector (DLC) to GDS.
  2. Check the "Current Data" about related DTC with GDS.

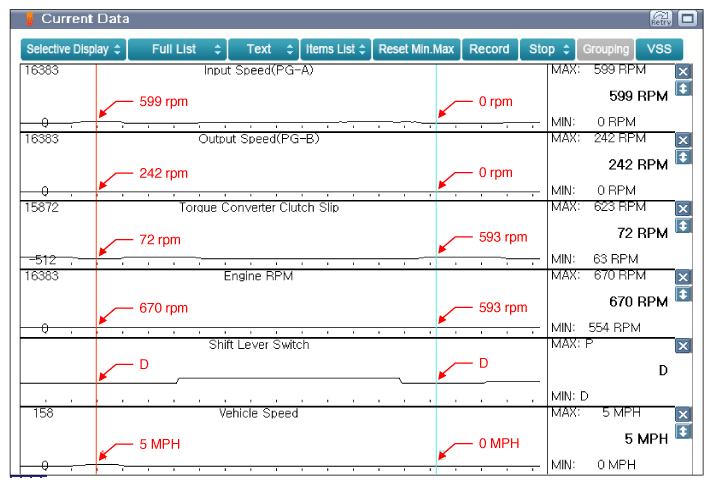

    Fig 1: Screen Display - D Range (Vehicle Speed 5MPH) And D Range (Vehicle Speed 0 MPH)
    G11811132Courtesy of KIA MOTOR AMERICA, INC.

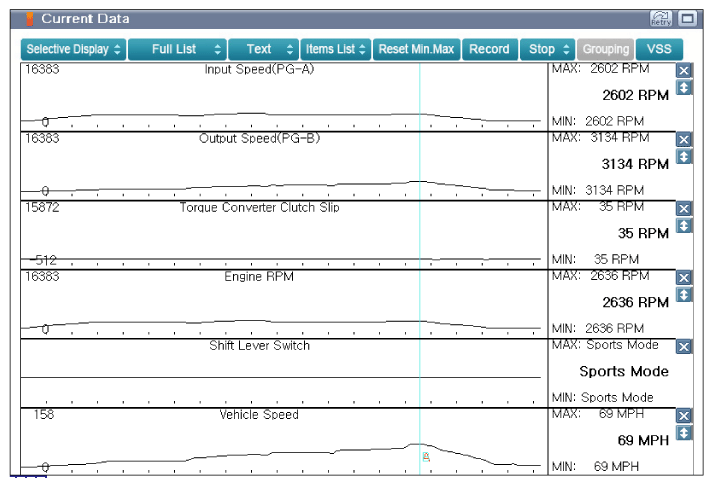

    Fig 2: Screen Display - At Acceleration
    G11811133Courtesy of KIA MOTOR AMERICA, INC.

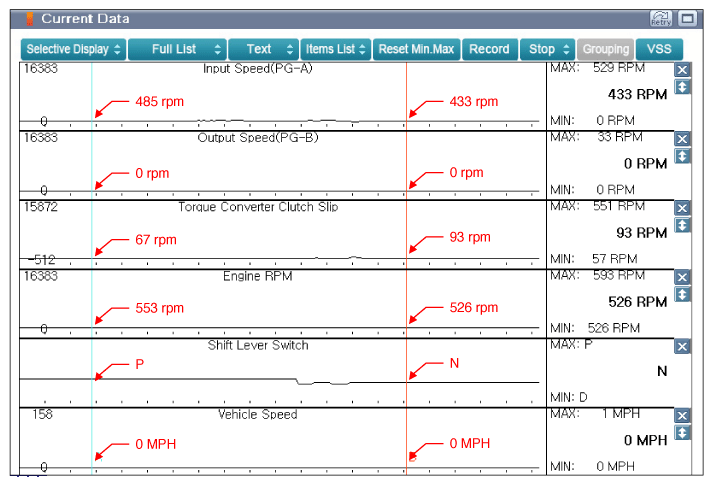

    Fig 3: Screen Display - P Range And N Range
    G11811134Courtesy of KIA MOTOR AMERICA, INC.
  3. Are the parameters displayed correctly?

    YES

    • Fault might be intermittent caused by poor contact in the sensor's and/or ECU's connector or was repaired and ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
