Engine Control System Diagnosis - 5.0L (1 Of 4)
>>
DTC P0090: Fuel Pressure Regulator 1 Control Circuit / Open
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

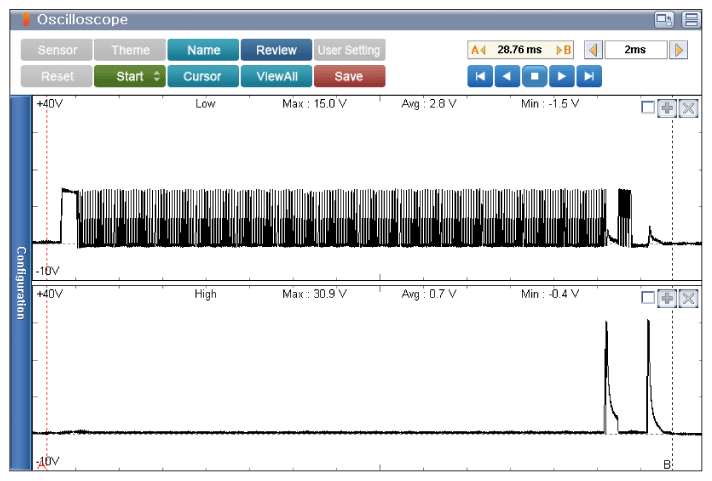

Fig 1: Screen Display - Operating Current Of High Pressure Pump (Fuel Pressure Regulator) At Idle
Courtesy of KIA MOTORS AMERICA, INC.
