Components Location

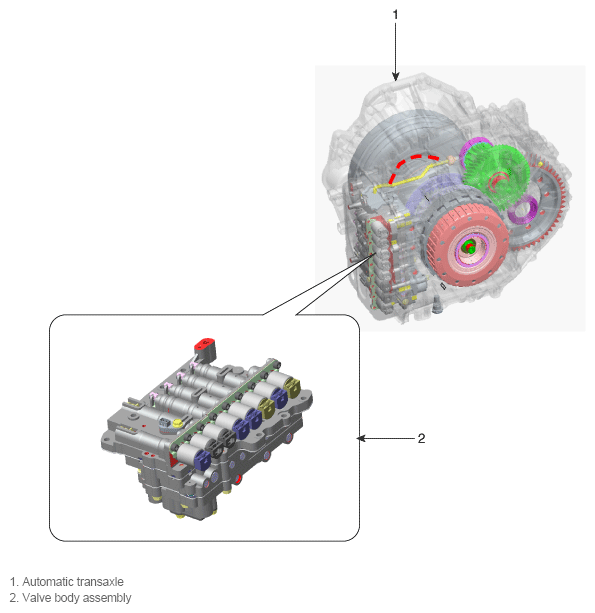

Fig 1: Locate Valve Body Assembly

G11795176

Courtesy of KIA MOTORS AMERICA, INC.

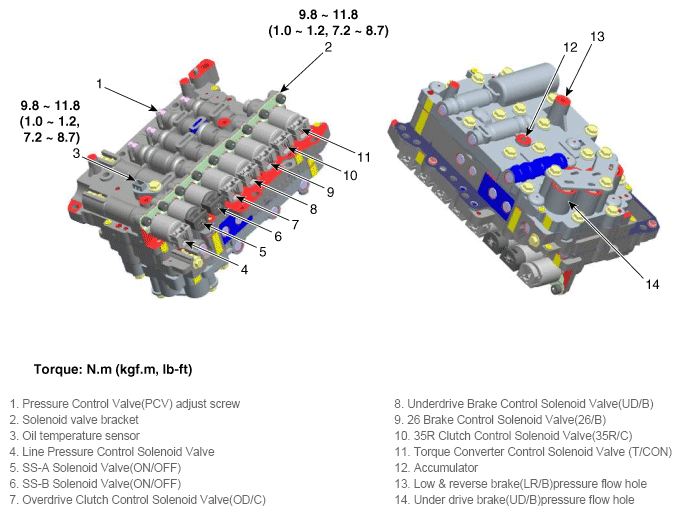

Fig 2: Valve Body Assembly Components Location

G11795177

Courtesy of KIA MOTORS AMERICA, INC.
