Component Location

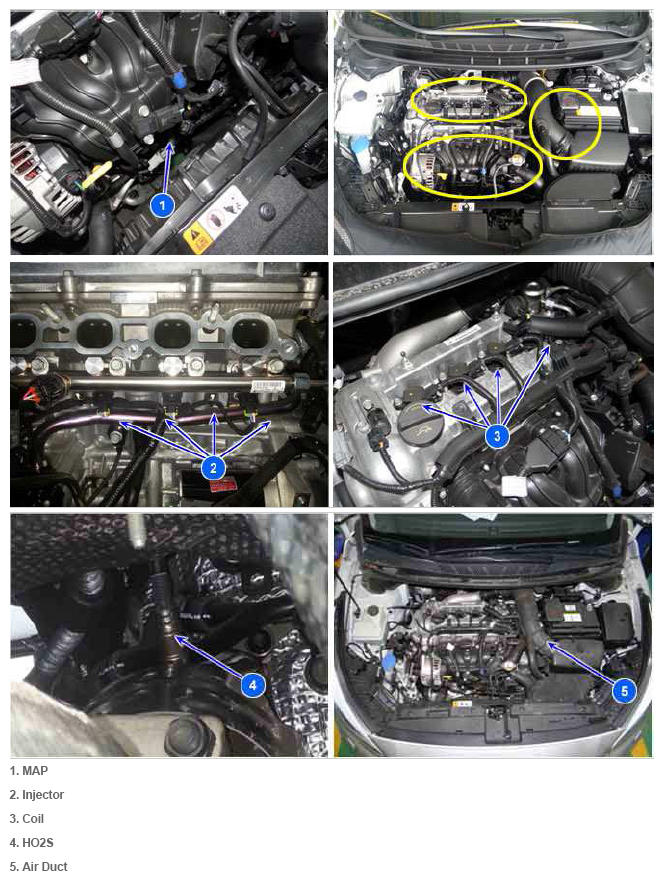

Fig 1: MAP, Injector, Coil, HO2S, Air Duct
G11798321Courtesy of KIA MOTORS AMERICA, INC.
