Signal Waveform & Data

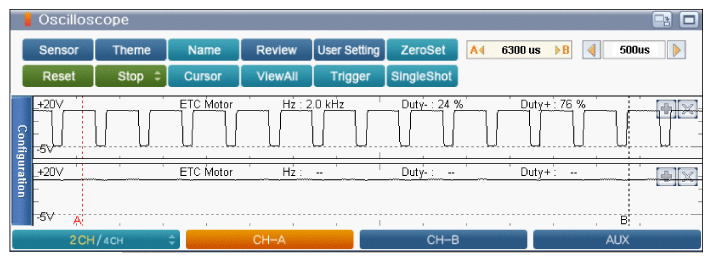

Fig 1: Screen Display - Engine Idle After Warm Up

G11798155

Courtesy of KIA MOTORS AMERICA, INC.

ETC Moter(+) → Duty(+) Approx. 76%

Duty(-) Approx. 24%

ETC Moter(-) → Not in Control
