System Inspection

■ Resetting Adaptive Values

1. Connect GDS to DLC (Data Link Cable).
2. IG "ON" & ENG "OFF"
3. Select the "Vehicle S/W Management"  about related DTC with GDS.

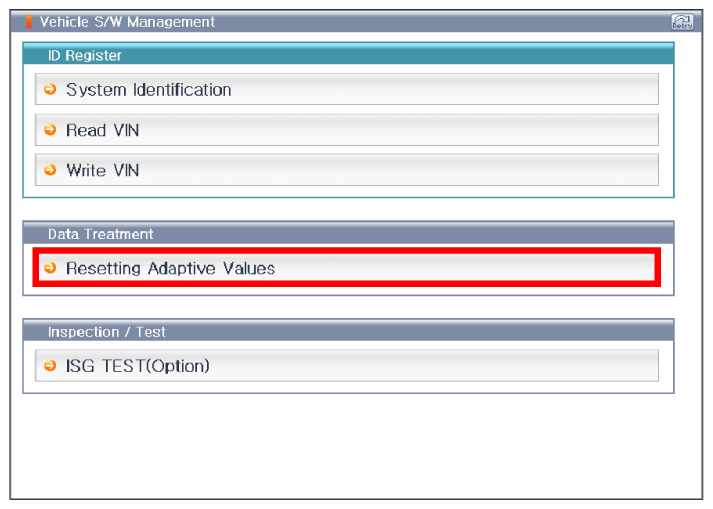

   Fig 1: Screen Display - Vehicle S/W Management Related DTC With GDS

   Courtesy of KIA MOTORS AMERICA, INC.
4. Go to "Verification Of Vehicle Repair " procedure.

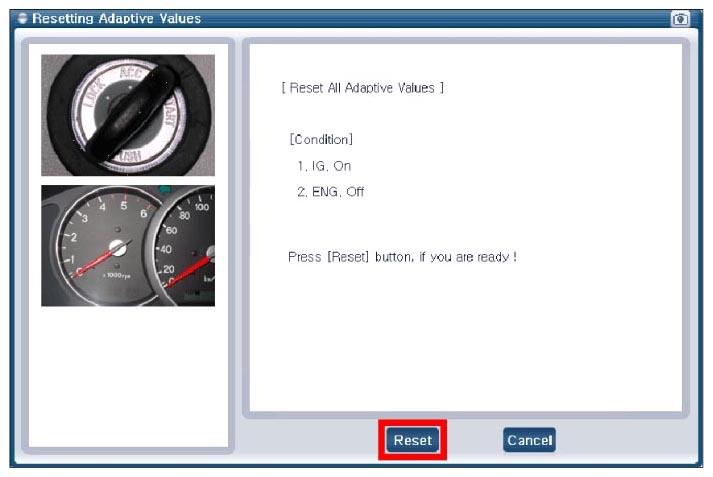

   Fig 2: Screen Display - Reset Button

   Courtesy of KIA MOTORS AMERICA, INC.
5. Press "Reset" button to progress for next procedure.

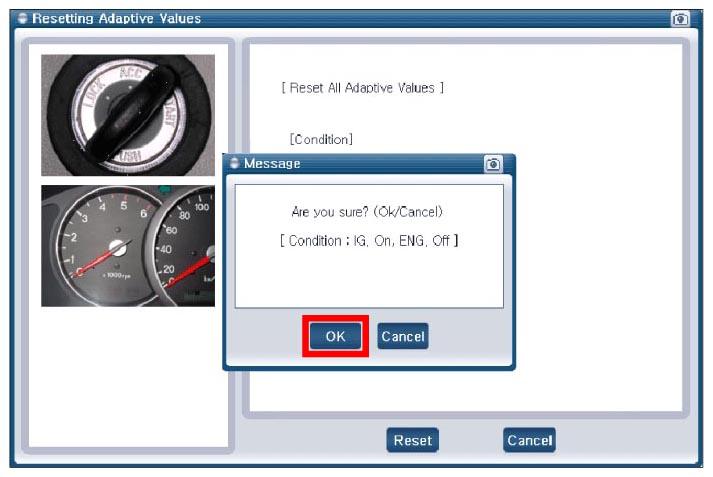

   Fig 3: Screen Display - OK Button (IG ON, ENG OFF)

   Courtesy of KIA MOTORS AMERICA, INC.
6. Press "OK" button(IG ON, ENG OFF).

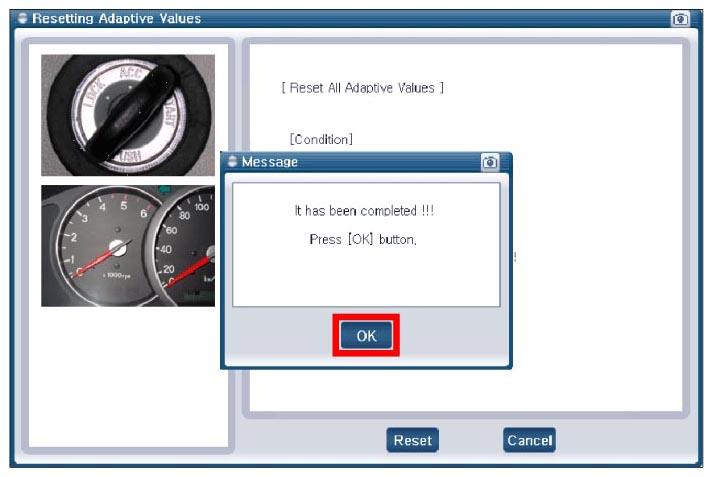

   Fig 4: Screen Display - OK Button

   Courtesy of KIA MOTORS AMERICA, INC.
7. When the "Resetting Adaptive Values" has been finished perfectly, press "OK" button and go to "Verification Of Vehicle Repair " procedure.
