Engine Control System Diagnosis - 1.6L (1 Of 3)
>>
DTC P0123: Throttle Position Sensor 1 Signal Circuit High Input
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

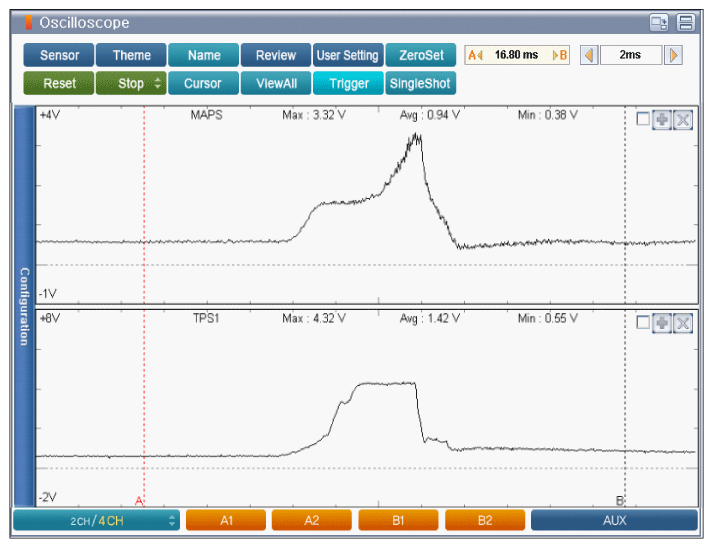

Fig 1: Screen Display - Normal Waveforms Of MAPS & TPS1 At Engine Wide Open Throttle (WOT)
Courtesy of KIA MOTORS AMERICA, INC.
