Component Inspection

■ Check IATS performance

1. Connect GDS to DLC (Data Link Cable).
2. Check the "Current Data"  about related DTC with GDS.

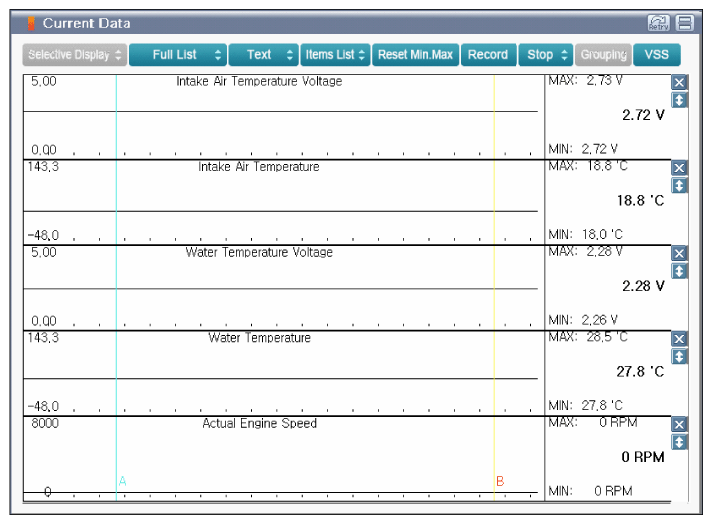

   Fig 1: Screen Display - IG ON & Engine OFF (Cold Condition)

   Courtesy of KIA MOTORS AMERICA, INC.

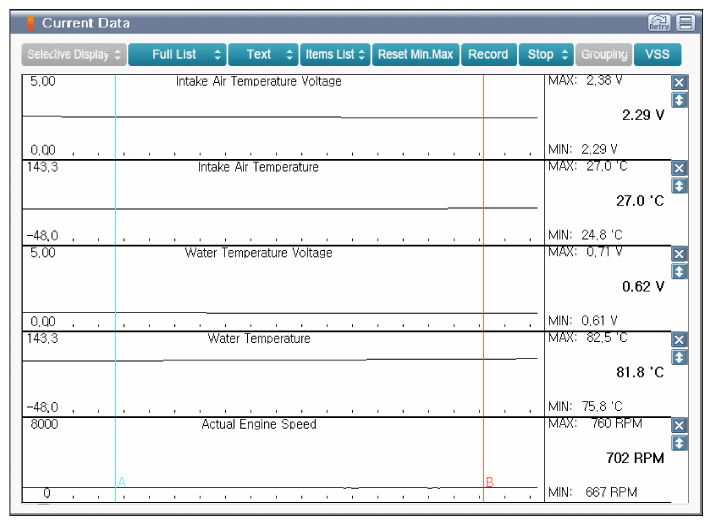

Fig 2: Screen Display - Engine Idle After Warm Up

Courtesy of KIA MOTORS AMERICA, INC.

■ Confirm Part Inspection

1. Does the IATS operate properly? (Check variation)

   YES

   • Go to "Verification Of Vehicle Repair " procedure.

   NO

   • Substitute with a known-good IATS and check for proper operation. If the problem is corrected, replace IATS and then go to "Verification Of Vehicle Repair " procedure.
