Signal Waveform & Data

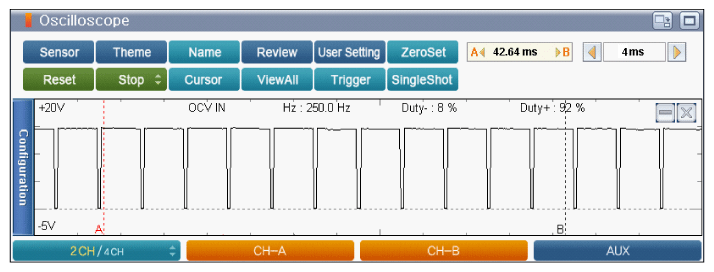

Fig 1: Screen Display - Normal Waveforms Of OCV (IN) At Engine Idle

Courtesy of KIA MOTORS AMERICA, INC.

Duty(-) of OCV is approximately 8% on engine idle. Duty(-) value increase in proportion to engine load.
