System Inspection

■ Check Ambient Air Temperature Sensor Signal

1. Connect GDS to DLC (Data Link Cable).
2. Select "Air Conditioner System" and Check "Current Data  " regarding ambient temperature sensor with GDS.

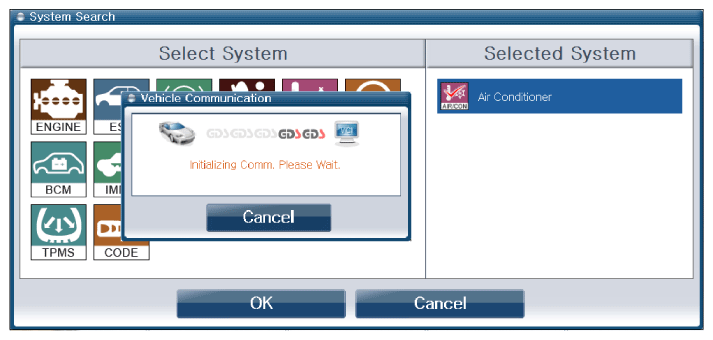

Fig 1: Screen Display - Air Conditioner System With GDS

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Screen Display - Ambient Temperature Sensor With GDS

Courtesy of KIA MOTORS AMERICA, INC.

■ Inspection Ambient Air Temperature Sensor

1. IG Key "OFF".
2. Disconnect AATS connector.
3. Measure resistance between signal and GND terminal of the AATS. (Component Side)

   Specification:

   Temperature	Resistance(kΩ)	Temperature	Resistance(kΩ)
   -20 °C(-4 °F)	18.76~21.37	40 °C(104 °F)	1.504~1.616
   0 °C(32 °F)	7.26~7.954	60 °C(140 °F)	0.757~0.835
   20 °C(68 °F)	3.183~3.372	80 °C(176 °F)	0.425~0.452
   25 °C(77 °F)	2.633~2.768	100 °C(212 °F)	0.220~0.255

■ Confirm Part Inspection

1. Does the AATS work properly? (Check variation)

   YES

   • Go to "Verification Of Vehicle Repair " procedure.

   NO

   • Substitute with a known-good AATS and check for proper operation. If the problem is corrected, replace AATS and then go to "Verification Of Vehicle Repair " procedure.
