Components And Components Location: Components

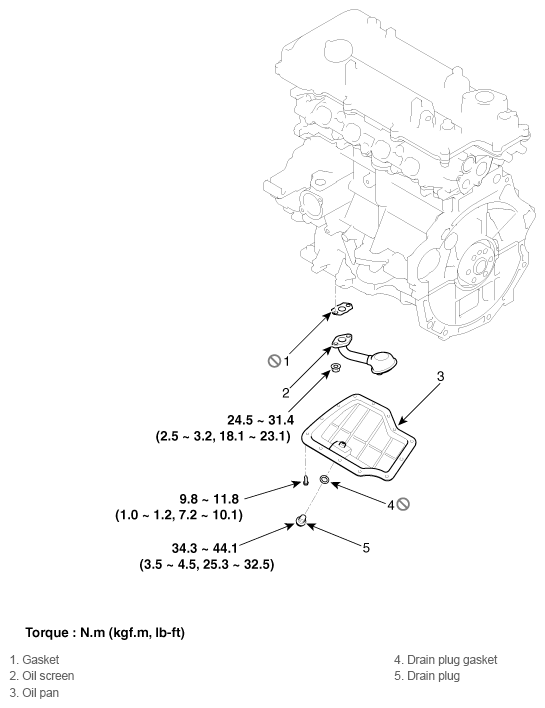

Fig 1: Exploded View Of Oil Pan With Torque Specification

G11794571

Courtesy of KIA MOTORS AMERICA, INC.
