Signal Waveform & Data

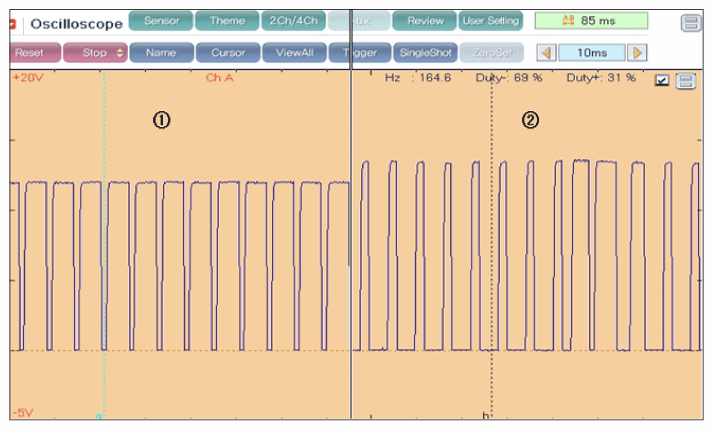

Fig 1: Scantool Display - Signal Waveform And Data (IG ON, Idle And No Electrical Load)
G11799041Courtesy of KIA MOTORS AMERICA, INC.

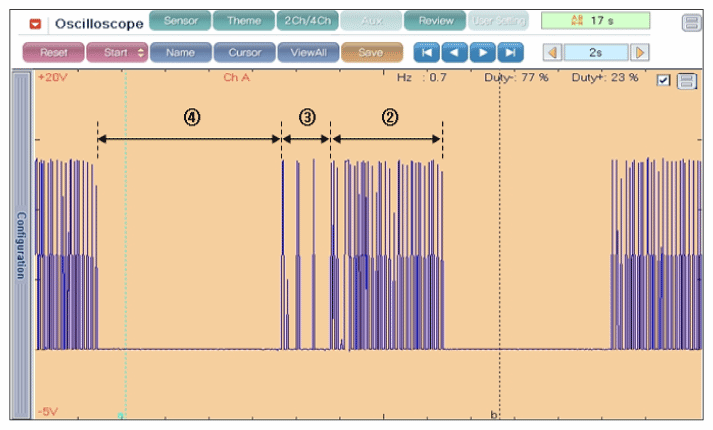

Fig 2: Scantool Display - Signal Waveform And Data (Idle, Electrical Load And Full Electrical Load)
G11799042Courtesy of KIA MOTORS AMERICA, INC.
  1. Normal waveform with IG ON
  2. Normal waveform with Idle and no electrical load
  3. Normal waveform with Idle and part electrical load
  4. Normal waveform with Idle and full electrical load (A/C, Defrost, Head Lamp, Repeater, Audio, etc)
