Idle Stop & Go (ISG) System - 1.8L
>>
DC/DC Converter
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

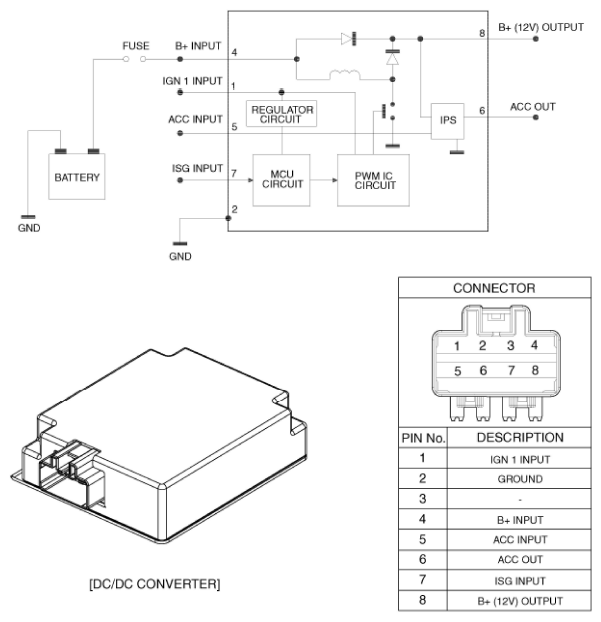

Fig 1: DC/DC Converter Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
In the ISG mode, if the power of an audio system turn off by draw down while "Auto Starting" or "Idle Starting" function operates, replace the DC/DC converter.
