Section 25 (Starting System - 1.8L)
>>
Starter
>>
Components And Components Location
>>
Components
Components And Components Location: Components
WARNING:
This page is about a different variant/trim than selected.
[NON-ISG Type]

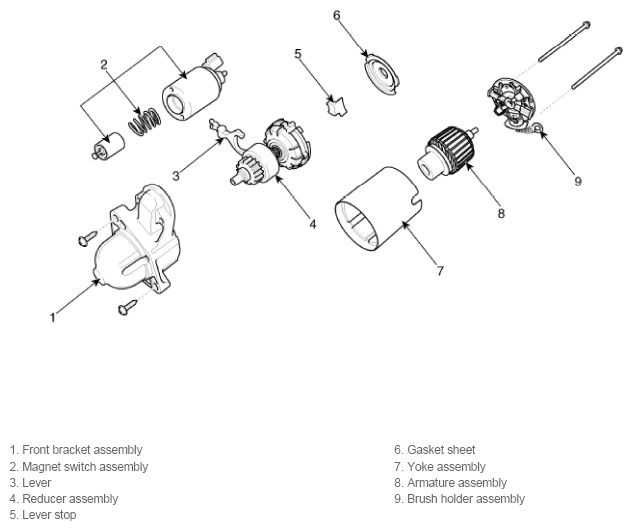

Fig 1: Exploded View Of Starter
Courtesy of KIA MOTORS AMERICA, INC.
