Exterior Bumper Antenna

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear bumper cover.

    (Refer to "REAR BUMPER COVER ")

  3. Disconnect the connector, then remove the rear bumper antenna (A) with loosening 2 screws.

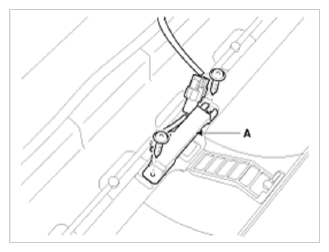

    Fig 1: Rear Bumper Antenna
    G09744831Courtesy of KIA MOTORS AMERICA, INC.
