BCM Diagnosis With GDS

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

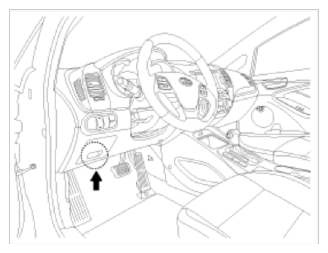

Fig 1: Center Lower Cover

Courtesy of KIA MOTORS AMERICA, INC.

The body control module can diagnose by using the GDS more quickly.
The BCM communicates with the GDS and then reads the input/output value and drives the actuator.
To diagnose the BCM function, select the menu of model and body control module.
Select "Input/output monitoring", if you will check current data of body network system. It provides input/output status of each module.
- BCM service data, CLU service data, SJB service data
If you will check each module data operation forcefully, select "Actuation test".

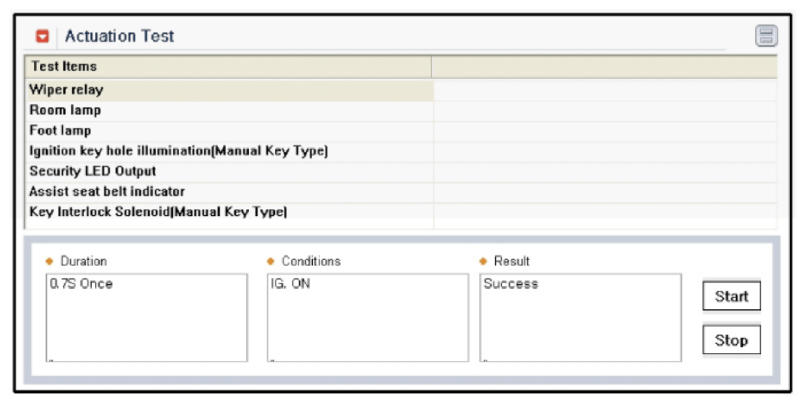

Fig 2: Scan Tool Display - Actuation Test Screen
Courtesy of KIA MOTORS AMERICA, INC.
If you want to change user option, select "user option".

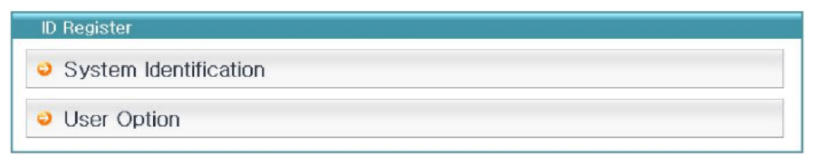

Fig 3: Scan Tool Display - ID Register Screen
Courtesy of KIA MOTORS AMERICA, INC.

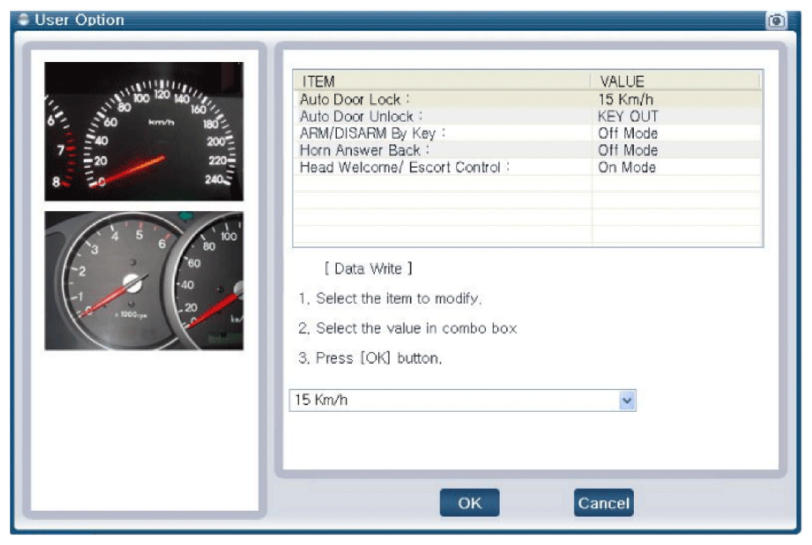

Fig 4: Scan Tool Display - User Option Screen
Courtesy of KIA MOTORS AMERICA, INC.
