Monitor GDS Data

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Connect GDS.
IG "ON" and engine "OFF".
Select "Diagnostic Trouble Codes (DTC)" mode.
After erase DTC

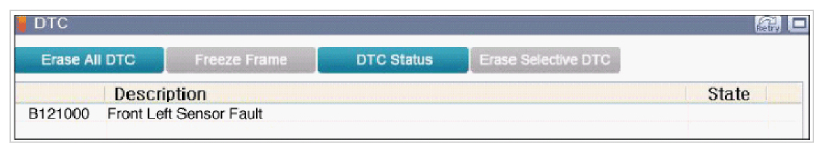

Fig 1: Front Left Sensor Fault Screen
Courtesy of KIA MOTORS AMERICA, INC.
Is the same DTC occurred again?
YES
- Go to next procedure.
NO
- Fault is intermittent caused by poor contact in the sensor's and/or BCM [PAS (Parking Assist System)]'s connector. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
