Repair Procedures: Replacement

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Disconnect the evaporator temperature sensor connector (A).
  3. Remove the evaporator temperature sensor (B) by pulling it out after rotating it 90° in a counterclockwise direction.

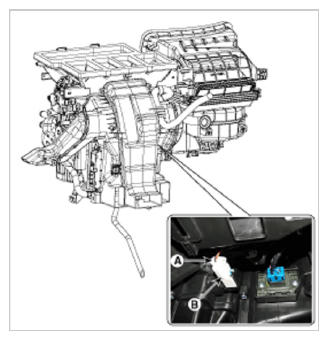

    Fig 1: Evaporator Temperature Sensor Connector
    G09745128Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
