Repair Procedures: Replacement

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the audio unit.

    (Refer to "AUDIO UNIT ")

  2. After loosening the mounting screws, remove the A/C & heater controller (A).

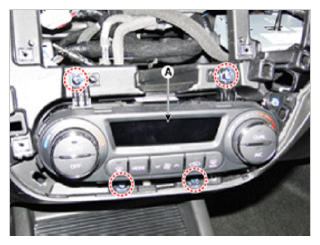

    Fig 1: A/C & Heater Controller With Mounting Screws
    G09745201Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the A/C & heater controller connector (A).

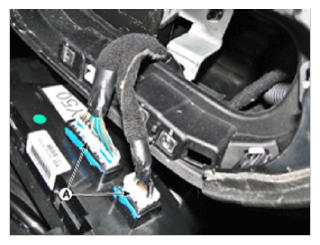

    Fig 2: A/C & Heater Controller Connectors
    G09745202Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
