Signal Waveform & Data

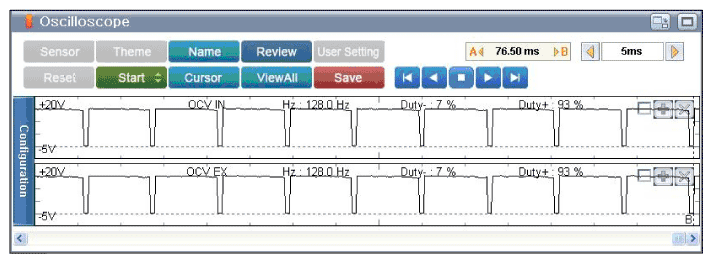

Fig 1: Scantool Display - Normal Waveform Of OCV At Idle
G11799772Courtesy of KIA MOTORS AMERICA, INC.

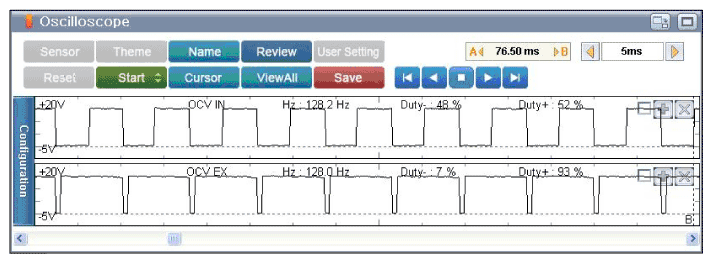

Fig 2: Scantool Display - Normal Waveform Of OCV At Acceleration
G11799773Courtesy of KIA MOTORS AMERICA, INC.
