Circuit Diagram

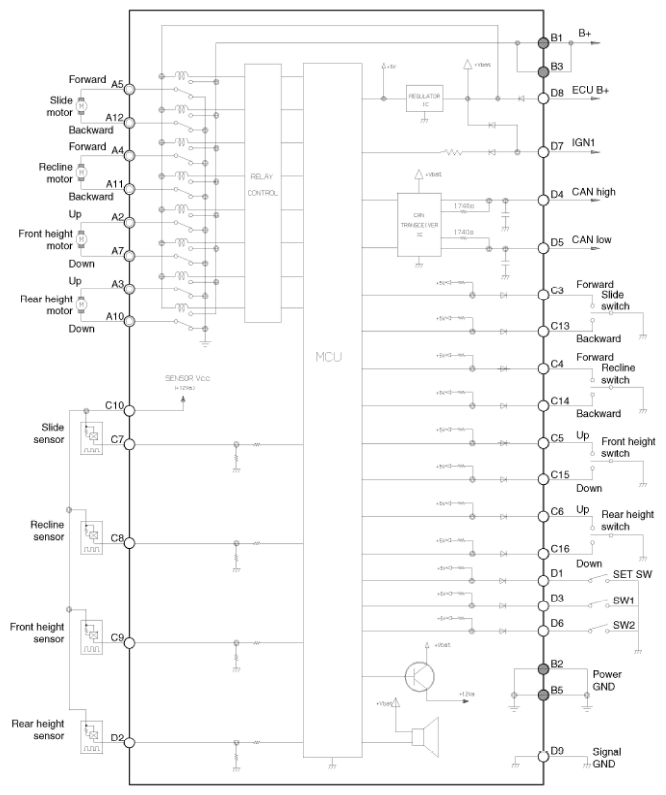

Fig 1: Integrated Memory Circuit Diagram

G11792196

Courtesy of KIA MOTORS AMERICA, INC.
