Component Inspection

■ Output speed sensor waveform Inspection

1. Connect "A/T solenoid valve" connector and GDS to Data Link Connector (DLC).
2. Engine ON and operate Input speed sensor.
3. Measure waveform between signal of Output speed sensor harness and chassis ground.

   Specification:  See specification waveform, refer to SPECIFICATION

4. Is the measured waveform within specifications?

   YES

   • Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION VEHICLE REPAIR " procedure.

   NO

   • Go to "PCM/TCM Inspection" procedure below.

■ PCM/TCM Inspection

1. Ignition off & Engine Off.
2. Connect "ATM solenoid valve" connector.
3. Connect GDS to Data Link Connector (DLC) and select Simulation mode.
4. Input specification frequency to signal of Output speed sensor by simulation mode.
   Fig 1: Screen Display - Output 150Hz → 190 RPM

   Courtesy of KIA MOTORS AMERICA, INC.

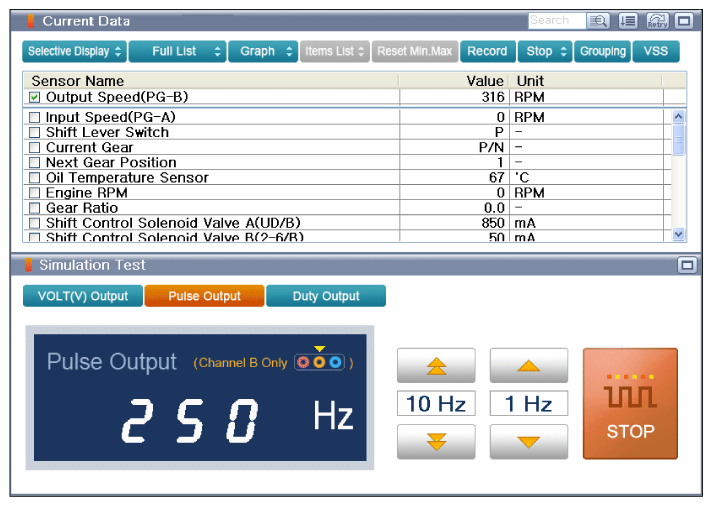

   Fig 2: Screen Display - Output 250Hz → 316 RPM

   Courtesy of KIA MOTORS AMERICA, INC.

   The values are subject to change according to vehicle model or conditions.

5. Is measured Output speed sensor value changed by Output frequency?

   YES

   • Substitute with a known-good Output speed sensor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Substitute with a known-good TCM and check for proper operation. If the problem is corrected, replace TCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
