Circuit Diagram (1)

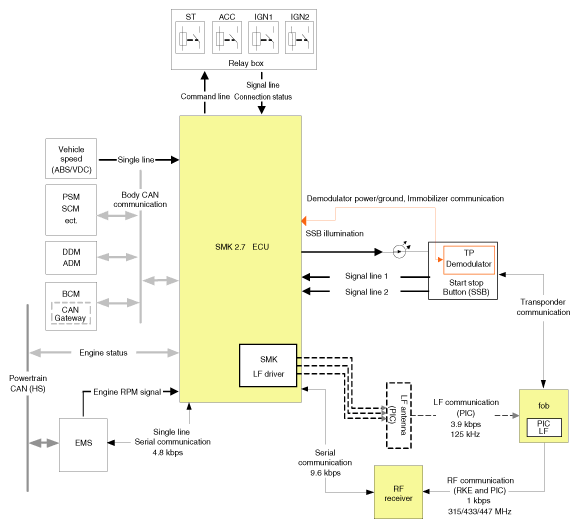

Fig 1: Button Engine Start System Circuit Diagram (1 Of 2)

G11786377

Courtesy of KIA MOTORS AMERICA, INC.
