GDS Data Analysis

  1. Connect GDS to Data Link Connector (DLC).
  2. IG "ON".
  3. Press the brake pedal.
  4. Monitor the "Brake Light Switch" parameter on the "Current Data  " menu of the GDS.

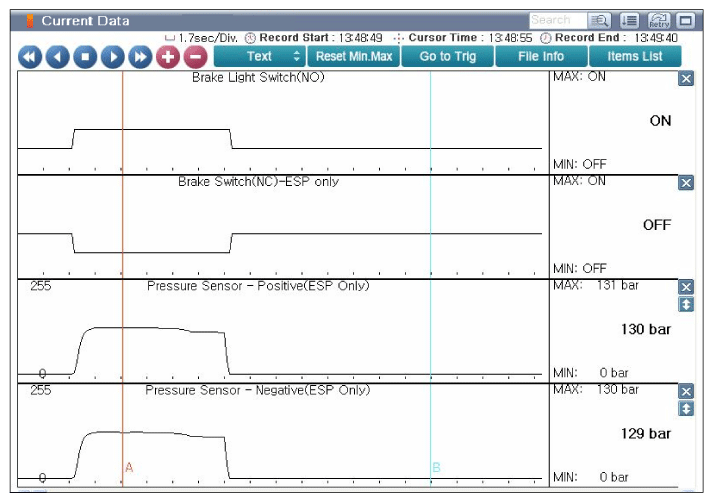

    Fig 1: Screen Display - Brake Switch Status When Brake Pedal Pressed
    G11787575Courtesy of KIA MOTORS AMERICA, INC.
  5. Brake Switch (NC) parameter changes as brake pedal is pressed?

    YES

    • Fault is intermittent caused by poor connection in brake light switch line and/or HECU's connector or was repaired and HECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
