GDS Data Analysis

  1. Connect GDS to Data Link Connector (DLC).
  2. Start and drive vehicle in gear and maintain vehicle speed at or above 10km/h. (6.2mph)
  3. Monitor the "Wheel Speed Sensor-Left Front" parameter on the "Current Data  " with GDS.

    Specification:  Compare with other parameters related to wheel speed sensor

    If it is the same as other parameters, it is in normal condition

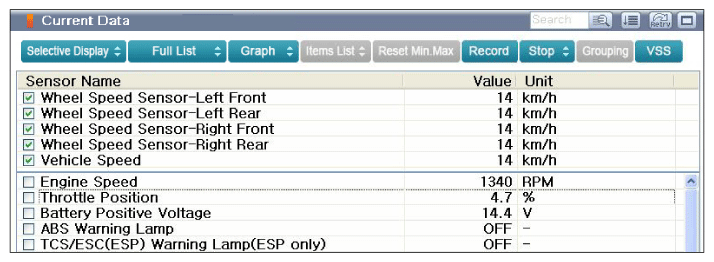

    Fig 1: Screen Display - Wheel Speed Sensor-Left Front Parameter On Current Data
    G11787489Courtesy of KIA MOTORS AMERICA, INC.
  4. Is parameter displayed within specifications?

    YES

    • Fault might be intermittent caused by faulty HECU or external noise, was repaired and HECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
