Blind Spot Detection System
>>
Blind Spot Detection Switch
>>
Components and Components Location
>>
Circuit Diagram
Circuit Diagram

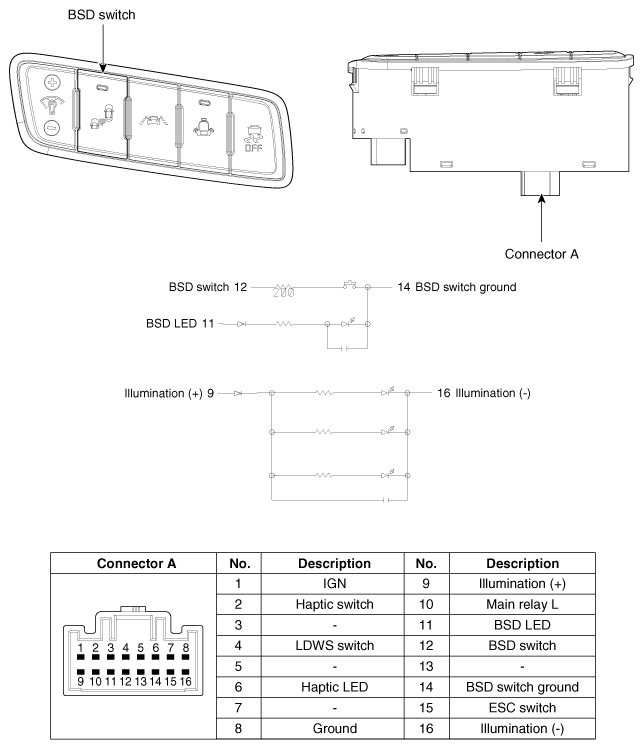

Fig 1: Blind Spot Detection Switch Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
