Circuit Diagram

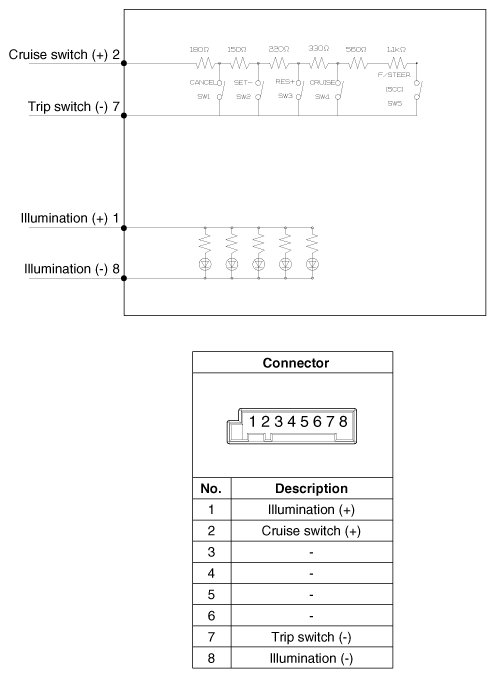

Fig 1: Smart Cruise Control Switch Circuit Diagram

G11783919

Courtesy of KIA MOTORS AMERICA, INC.
