GDS Data Analysis

  1. Connect GDS.
  2. IG "ON" and engine "OFF".
  3. Select "Diagnostic Trouble Codes (DTC)"  mode.
  4. After erase DTC, keep the vehicle condition within "the enable conditions" (Refer to "DTC DETECTING CONDITION " table).

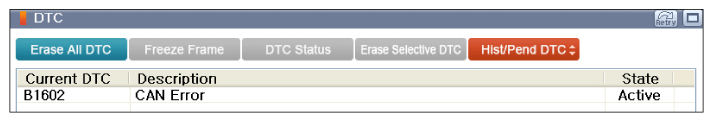

    Fig 1: Scantool Display - Diagnostic Trouble Code
    G11787384Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the same DTC occurred again?

    YES

    • Go to next procedure.

    NO

    • Fault is intermittent caused by poor contact in the sensor's and/or BCM's connector or was repaired and BCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
