System Inspection

■ Auto detected configuration reset, Variant coding

1. Connect GDS to DLC(Data Link Cable)
2. Select the "Vehicle S/W Management" about related DTC with GDS(Auto detected configuration reset).

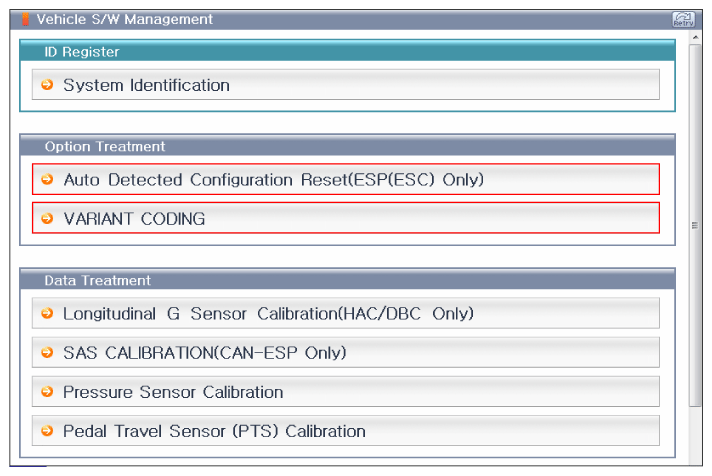

   Fig 1: Screen Display - Auto Detected Configuration Reset And Variant Coding

   Courtesy of KIA MOTORS AMERICA, INC.

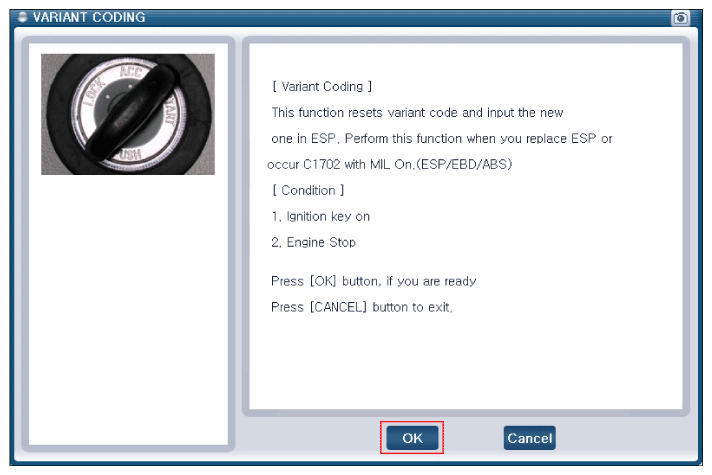

   Fig 2: Screen Display - Auto Detected Configuration Reset And Variant Coding (Press "OK")

   Courtesy of KIA MOTORS AMERICA, INC.

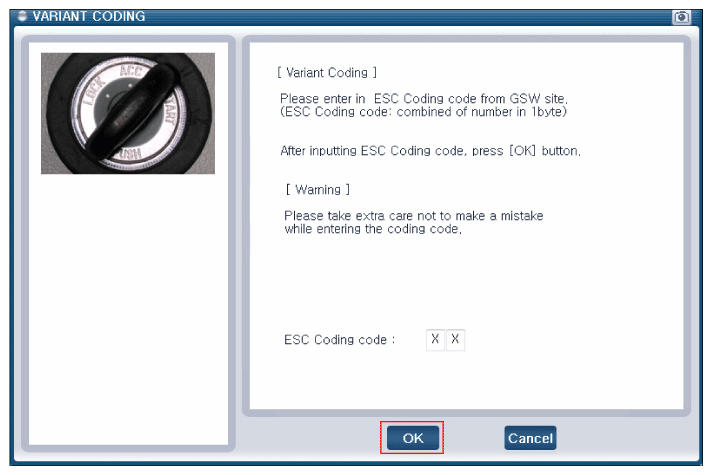

   Fig 3: Screen Display - Auto Detected Configuration Reset And Variant Coding (Press "OK" - Please Enter In ESC Coding Code From GSW Site)

   Courtesy of KIA MOTORS AMERICA, INC.

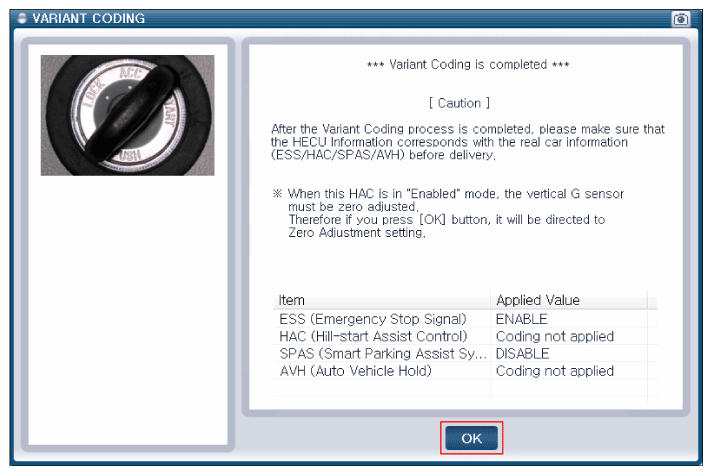

   Fig 4: Screen Display - Auto Detected Configuration Reset And Variant Coding (Completed)

   Courtesy of KIA MOTORS AMERICA, INC.
3. Select the "Vehicle S/W Management" about related DTC with GDS(Variant coding).

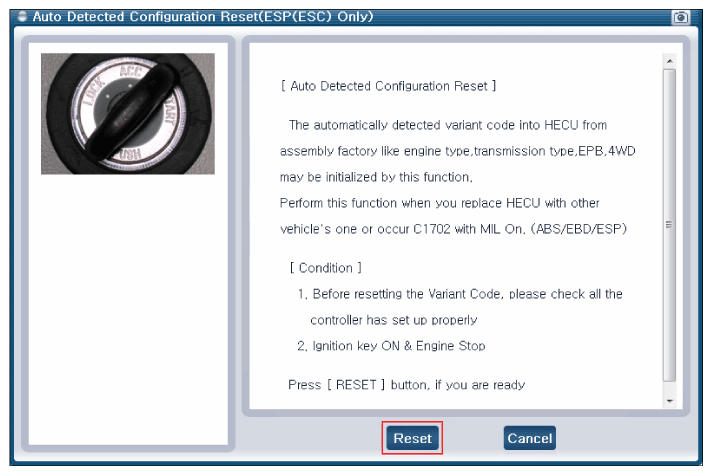

   Fig 5: Screen Display - Auto Detected Configuration Reset (Press "Reset")

   Courtesy of KIA MOTORS AMERICA, INC.

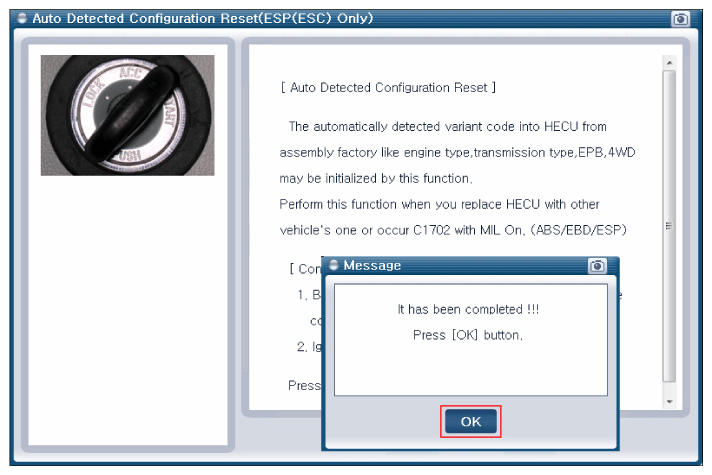

   Fig 6: Screen Display - Auto Detected Configuration Reset (Completed)

   Courtesy of KIA MOTORS AMERICA, INC.
4. When the "Vehicle S/W Management" has been finished perfectly, go to "Verification Of Vehicle Repair " procedure.
