Special Service Tools

Tool Name/Number Illustration Description
Engine support fixture (bar) 09200-3N000
G09777701
 Used for holding engine assembly when removing/installing transaxle Used with the adapter (09200-4X000) and supporter (09200-2S000)
Engine support fixture (supporter)
  1. 09200-2S000
  2. 09200-2S100
  3. 09200-2S200
G09777702
 Used for holding engine assembly when removing/installing transaxle Used with the bar (09200-3N000) and adapter (09200-4X000)
Engine support fixture (adapter) 09200-4X000
G09777703
 Used for holding engine assembly when removing/installing transaxle Used with the engine support bar (09200-3N000) and supporter (09200-2S000)
Oil seal installer
  1. 09431-26100 (Installer)
  2. 09231-H1100 (Handle)
G09777704

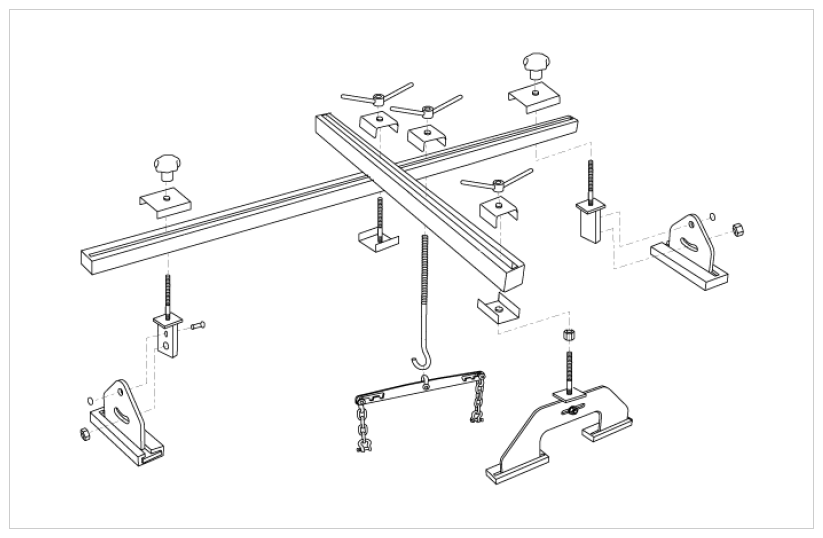

* Engine support fixture special tool assembly drawing

Fig 1: Engine Support Fixture Special Tool Assembly Diagram
G09777705Courtesy of KIA MOTORS AMERICA, INC.
