Component Inspection

WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ignition "OFF", Connect GDS to Data Link Connector (DLC).
  2. Shift the gear to the P position & Ignition "ON" (Power Button LED "Red"), and select the "Current Data" mode.
  3. Check the relevant DTC item of Current Data. (Measure the sensor data through test driving if necessary.)

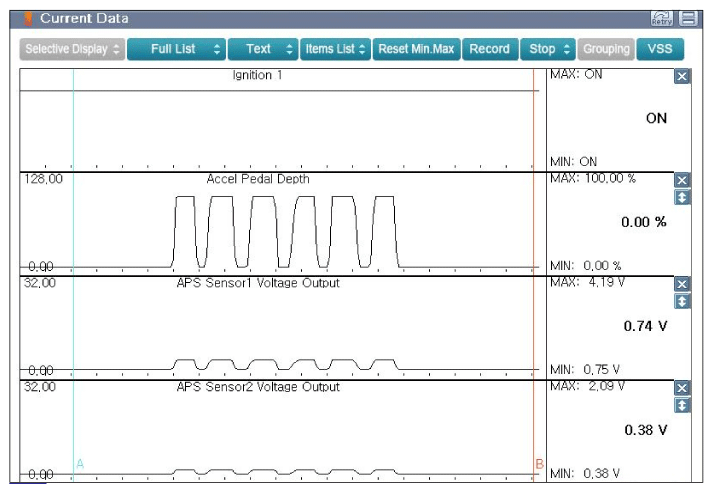

    Fig 1: Screen Display - APS1 And APS2 Voltage Output According To Pressing Down Of Accelerator Pedal
    G10749098Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the measured data within specifications?

    YES

    NO

    • Carefully re-do this troubleshooting guide steps.
    • problem still occurs, replace, APS and then go to "Verification Of Repair " procedure.
