Monitor GDS Data

WARNING: This page is about a different car, the 2017 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ignition "ON" (Power Button LED "Red")
  2. Erase DTC after connecting GDS.
  3. Check Smart key status in "Vehicle S/W Management"  , if DTC is retrieved.

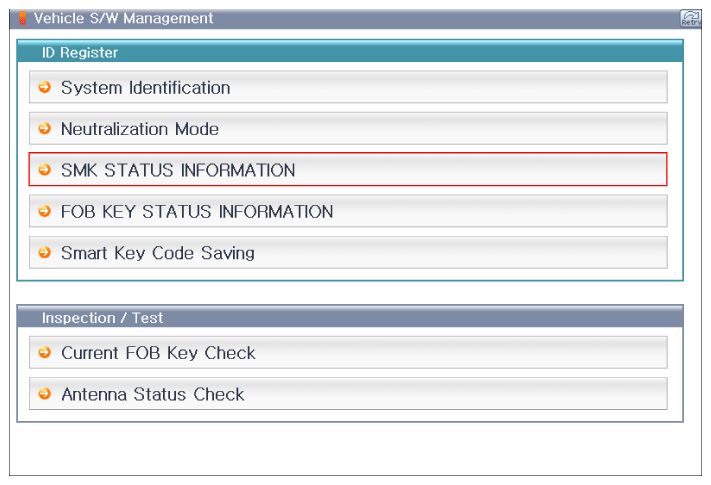

    Fig 1: Scantool Display - SMK Status Information In Vehicle S/W Management
    G11941668Courtesy of KIA MOTORS AMERICA, INC.

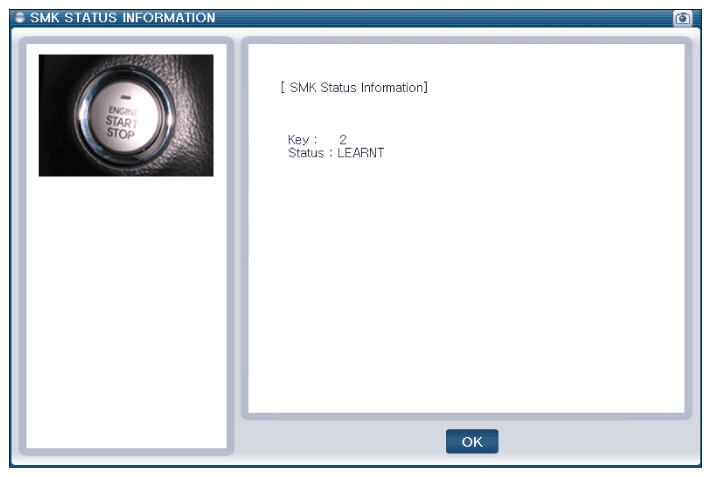

    Fig 2: Scantool Display - Number Of Registered Key And Learning Status
    G11941669Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the Smart key unit learnt status?

    YES

    • Fault is intermittent caused by poor contact in Smart Key unit and/or VMCU's connector or was repaired and Smart Key unit and memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
