Input And Output Diagram

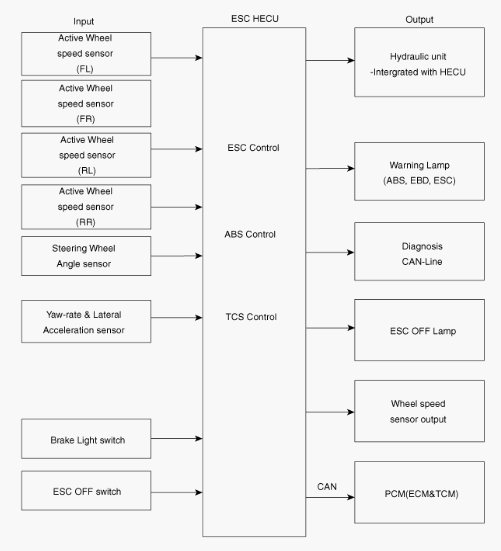

Fig 1: ESC, ABS And TCS Control - System Diagram

G00553170

Courtesy of KIA MOTORS AMERICA, INC.
