Side Impact Sensor

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. To remove the emergency fastening device (C), keep on pushing the lock pin (A) as arrow direction. And then remove the seat belt after pushing the lock pin (B).

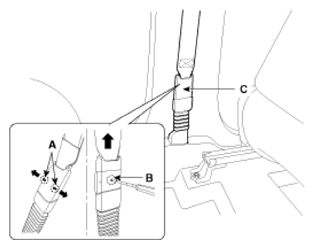

    Fig 1: Pushing Lock Pin Of Seat Belt
    G09773461Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the center pillar lower trim.

    (Refer to "CENTER PILLAR TRIM ")

  4. Disconnect the side impact sensor connector (A).
    Fig 2: Identifying Side Impact Sensor And Connector
    G09773462Courtesy of KIA MOTORS AMERICA, INC.
  5. Loosen the side impact sensor mounting bolt and then remove the side impact sensor (B).
