DATA COLLECTION: EXTRACT CALIFORNIA EMISSIONS DATA FROM ECU (DC1501)

TECHNICAL SERVICE BULLETIN

Reference Number(s): ENG147, Date of Issue: July 1, 2015

KIA:	2015MY Multiple Models (see table at the end of this article)
GROUP:	Engine

SERVICE INFORMATION

This bulletin provides information related to extracting "in use performance tracking" emissions data from the Engine Control Unit (ECU) of certain vehicles sold in California. The California Air Resources Board (CARB) requires the emissions data from vehicles with a minimum of 3,000 accumulated miles without reprogramming or resetting. To facilitate collection of this data at the dealer level, GDS/KDS screenshots will allow the capture of relevant parameters.

NOTE: IF THE VEHICLE MEETS THE CRITERIA BELOW, CALIFORNIA DEALERS MUST PERFORM THIS DATA COLLECTION ON VEHICLES WHENEVER AN AFFECTED VEHICLE IS IN THE SHOP FOR ANY MAINTENANCE OR REPAIR.
THIS DATA COLLECTION DOES NOT APPLY TO VEHICLES OR DEALERS OPERATING OUTSIDE OF CALIFORNIA.

For vehicles listed on DCS as requiring this procedure , follow the instructions in this bulletin after confirming that the following criteria are met:

WebDCS shows this as an open Data Collection code DC1501A → U (depending on model) for the vehicle.

NOTE: Note that as sufficient data is collected, individual line items per model may be closed without updates to the TSB. Once a line item is closed on DCS, no further data collection is required. Data collections initiated after a line item is closed are subject to chargeback .

Vehicle has more than 3000 miles on its odometer.
Vehicle repair history does not show battery replacement/disconnection/reset or an ECU Update done in the last 3000 miles, because IUMPR (In Use Monitor Performance Ratio) data would have been cleared by such an event.
Vehicle does not have a check engine light ON.
NOTE: If vehicle meets above criteria, collect data prior to any other campaign or repair-related activities.

GDS SERVICE PROCEDURE

(For KDS procedure, proceed to Page 7)

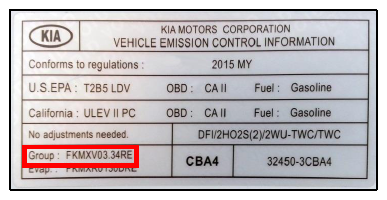

Open the engine compartment and locate the Vehicle Emission Control Information label. Write down the "Group" number for later entry into the form.

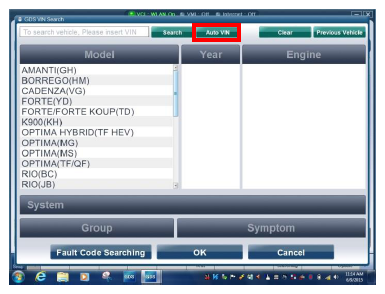

With the ignition key ON, insert the VCI into the DLC and turn on the GDS. Access the GDS vehicle identification number (VIN) screen and configure the vehicle using the VIN AUTO DETECT Function.
NOTE:
- GDS must be updated to version N-K-01-15-0000, or later, to properly collect data.
- GDS must be connected to the internet to submit data.

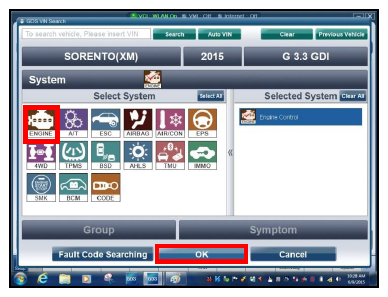

Choose Engine and Click on OK .
NOTE: Screens shown in this bulletin are for demonstration ONLY purposes and will vary depending on the vehicle.

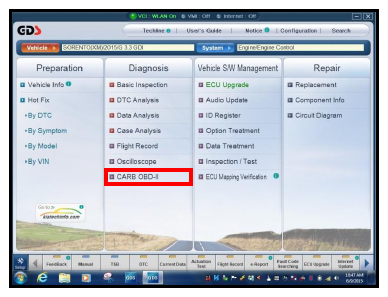

Select CARB OBD-II under the Diagnosis tab.

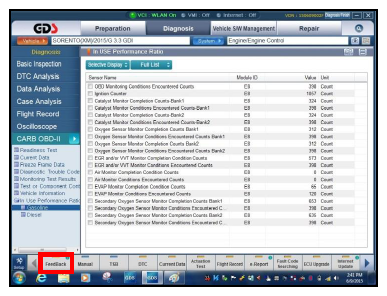

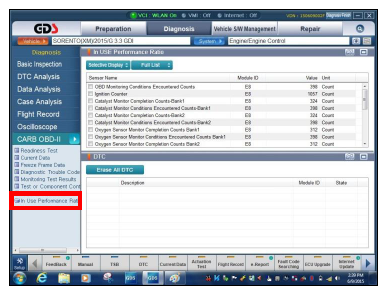

Click on IN USE Performance Ratio at the bottom left of the screen.
NOTE: If all values indicate "Not Supported" or "0", check to make sure you have GDS software version N-K-01-15-0000 or later. If the software version is correct, and all values show "Not Supported" or "0", the vehicle will not qualify for this data collection, as it may have received a recent ECM Update or battery replacement/reset of the data values.

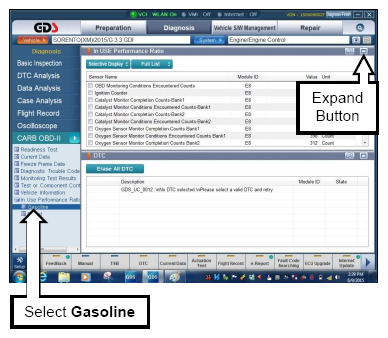

Click on Gasoline and then click the Expand button at the top right corner of the IN USE Performance Ratio window.

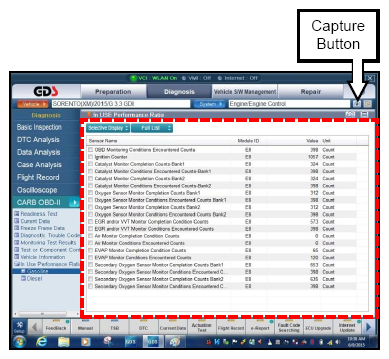

Click Gasoline . Then, click the Capture button.
NOTE: Make sure to capture the entire screen. If only part of the screen is displayed, first click the "Expand" button as described in step 6.

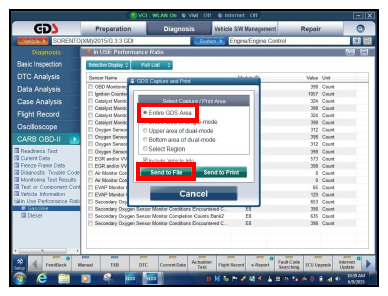

Select Entire GDS Area and click Send to file . The GDS will set up a destination folder and file name to save the captured screenshot. Change the file name to include the model/engine, the last 6 digits of the VIN and the date (mmddyyyy), as shown below.
After saving the file, click on Feedback button.
NOTE: GDS must be connected to the internet to submit data.

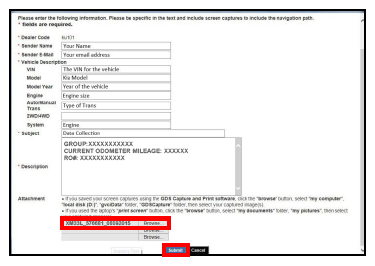

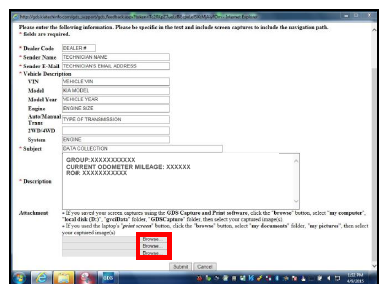

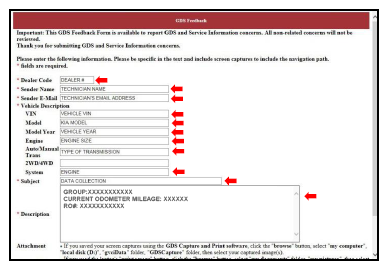

Enter all the information requested in the form, including your name and email address. Additionally, enter the following information:

For System, enter Engine
For Subject, enter Data Collection

In the Description area,

Type Group: followed by the group number from the Vehicle Emission Control Information Label collected in step 1.
Add current odometer mileage.

Add RO#.

To attach the data to the feedback form, click on the Browse button.
NOTE: Ensure that you attach the correct files. Incorrect attachments render data submissions useless and are subject to a charge-back of the warranty claim.

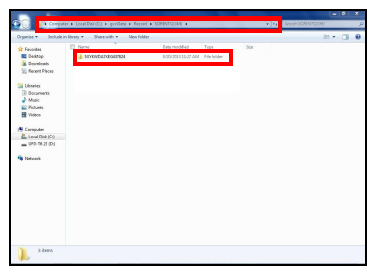

Use the path shown below to navigate to the destination folder and file created in step 8.
- Navigate to: Local Disk (C:) > gvciData > Record
- Click on the folder for the vehicle i.e. , "Sorento (XM)."
- Click on the folder containing the vehicle VIN, as shown.

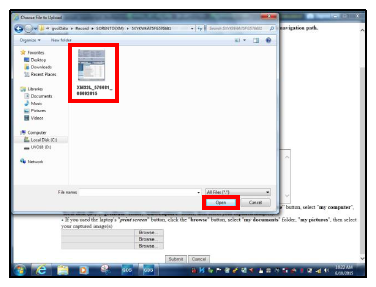

Select the correct file and click the Open button to attach it to the feedback form.
NOTE: Ensure that you attach the correct files. Incorrect attachments render data submissions useless and are subject to a charge-back of the warranty claim.
When the file name appears in the attachment field, and all the information has been entered, click on the Submit button.
NOTE: GDS must be connected to the internet to submit data.

KDS SERVICE PROCEDURE

Open the engine compartment and locate the Vehicle Emission Control Information label. Write down the "Group" number for later entry into the form.

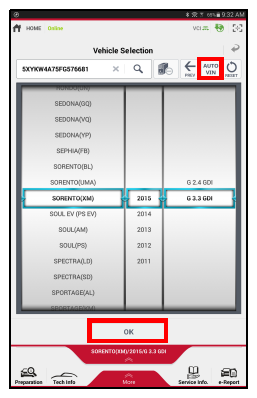

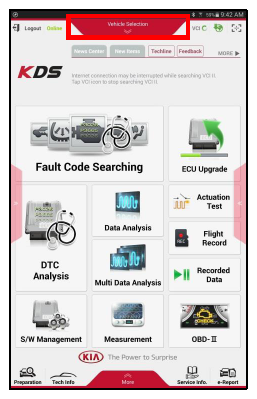

With the ignition key ON, insert the VCI II into the DLC and swipe down on the Vehicle Selection area to identify the vehicle.
NOTE: Screens shown in this bulletin are for demonstration ONLY purposes and will vary depending on the vehicle.
Select AUTO VIN and click OK .

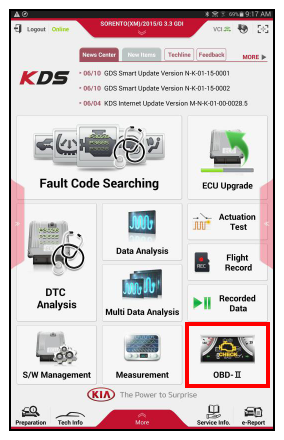

Once back on the KDS Home Screen, select OBD-II .

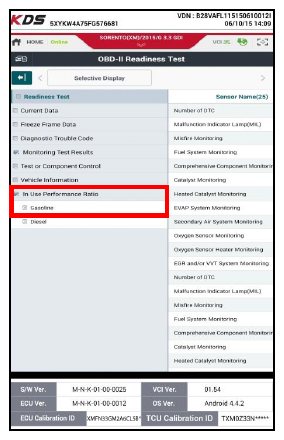

Select IN USE Performance Ratio > Gasoline.
Select the Screen Capture button to save a screenshot of the data.
Select the Save button to save the screenshot.

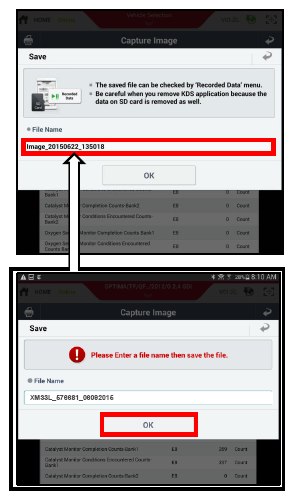

The KDS will set up a destination folder and file name to save the screenshot. Change the file name to include the model/engine, the last 6 digits of the VIN and the date (mmddyyyy), as shown below.
Select OK to save the image.
Select the Return Arrow on the screen and select the HOME button to return to the KDS Home Screen.
NOTE:
- Steps 11~17 will need to be performed only once to properly set up KDS for this Data Collection procedure.
- If Chrome is already the default KDS browser, proceed to step 12.
- If access to the External Storage has already been added to the file manager, proceed to step 18.
First, set Chrome as the default Browser. If this step has been previously done, proceed to step 12. If not, access: Configuring Browser for Techline Cases on KGIS for more information.

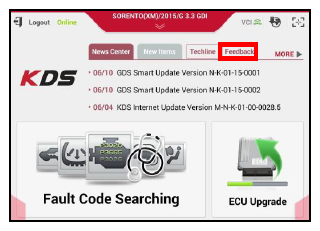

Once Chrome is set as the default browser, navigate to the KDS Home Screen and select Feedback.
NOTE: steps 12~17 will add access to Internal and External Storage to the file manager.

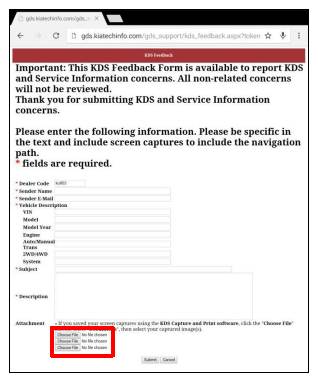

Select one of the Choose File buttons at the bottom of the screen.

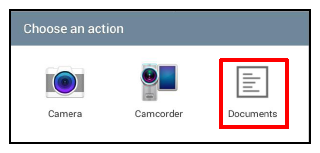

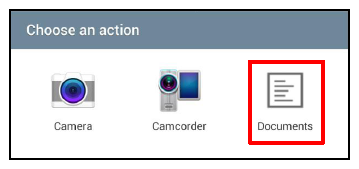

Select Documents .

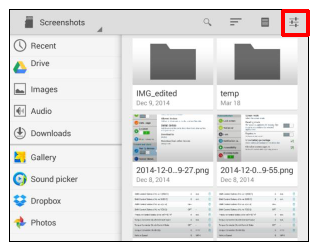

Select the Settings button on the upper right hand corner.
Check the box for Show advanced device opt. and Show file size , as shown.

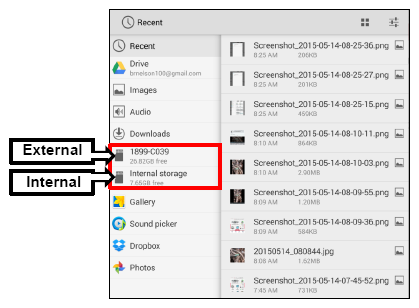

Access to Internal and External Memory is now available on the left hand side of the file manager.

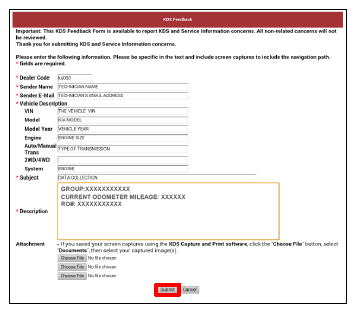

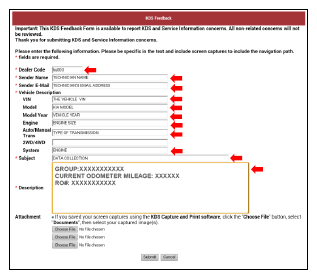

Return to the KDS Home Screen and select Feedback (Pg. 10, step 12). Enter all the information requested in the form, including your name and email address. Additionally, enter the following information.

For System, enter Engine
For Subject, enter Data Collection

In the Description area,

Type Group: followed by the group number from the Vehicle Emission Control Information Label collected in Pg. 7, step 1.
Add current odometer mileage.

Add RO#.

NOTE: Make sure the email address is entered correctly or the Feedback form will fail to submit.

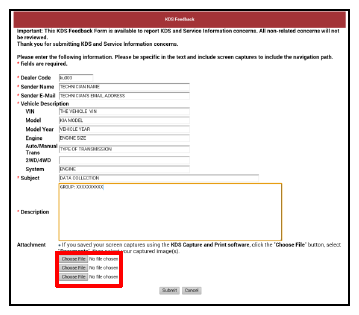

To attach the screenshots to the report, select Choose File .
Select Documents .

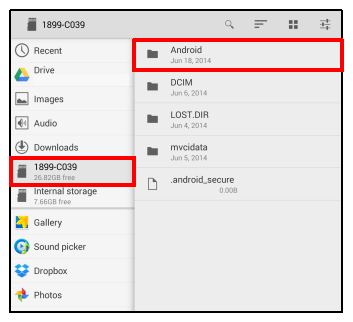

Select External Storage > Android.

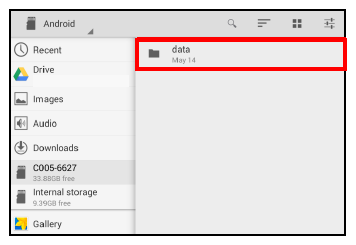

Select data.

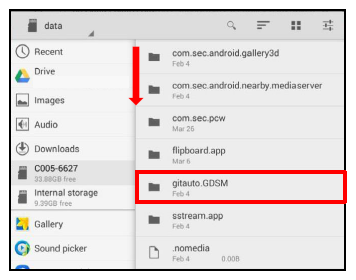

Scroll down and select gitauto.GDSM.

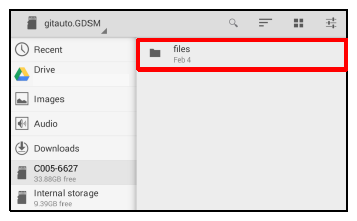

Select files .

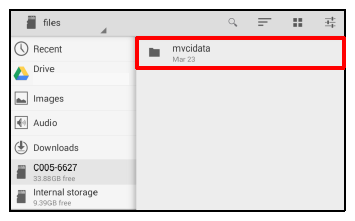

Select mvcidata.

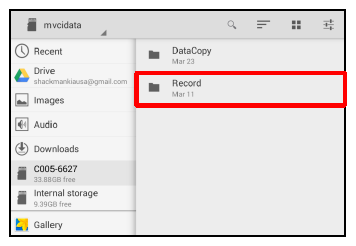

Select Record.

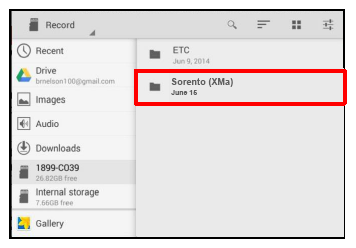

Select the vehicle model.

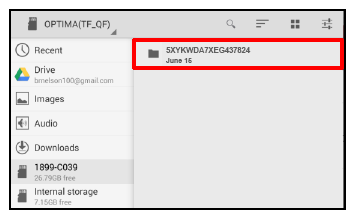

Select the VIN.

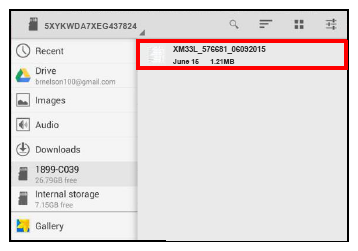

Select the Screenshot.
Select Submit.
NOTE: Ensure that you attach the correct files. Incorrect attachments render data submissions useless and are subject to a charge-back of the warranty claim.

AFFECTED PRODUCTION RANGE

Model	Production Range
Cadenza 3.3L ULEV, Forte 1.6L ULEV, Forte 1.8L SULEV, Forte 1.8L ULEV, Forte 2.0L SULEV, Forte 2.0L ULEV, K900 5.0L ULEV, Optima 2.0L ULEV, Optima 2.4L SULEV, Optima 2.4L ULEV, Optima HEV 2.4L ULEV, Rio 1.6L ULEV, Sedona 3.3L ULEV, Sorento 2.4L ULEV, Sorento 3.3L ULEV, Soul 1.6L ULEV, Soul 2.0L ULEV, Sportage 2.0L ULEV, Sportage 2.4L SULEV and Sportage 2.4L ULEV	2015MY

2015MY DATA COLLECTION WARRANTY CLAIM INFORMATION

NOTE: As sufficient data is collected, individual line items per model may be closed without updates to the TSB. Once a line item is closed on DCS, no further data collection is required. Data collections initiated after a line item is closed are subject to charge-back.

Campaign ID	Claim Type	Causal P/N	Qty.	N Code	C Code	Repair Description	Labor Op Code	Time	Repl. P/N	Qty
DC1501A	V	100CA EM999	0	N99	C99	Extract ECU data: Cadenza 3.3 ULEV	15VG33U1	0.3 M/H	N/A	0
DC1501B						Extract ECU data: FORTE 1.6 ULEV	15TD16U1
DC1501C						Extract ECU data: FORTE 1.8 SULEV	15TD18S1
DC1501D						Extract ECU data: FORTE 1.8 ULEV	15TD18U1
DC1501E						Extract ECU data: FORTE 2.0 SULEV	15TD20S1
DC1501F						Extract ECU data: FORTE 2.0 ULEV	15TD20U1
DC1501G						Extract ECU data: K900 5.0 ULEV	15KH50U1
DC1501H						Extract ECU data: OPTIMA 2.0 ULEV	15TF20U1
DC1501I						Extract ECU data: OPTIMA 2.4 SULEV	15TF24S1
DC1501J						Extract ECU data: OPTIMA 2.4 ULEV	15TF24U1
DC1501K						Extract ECU data: OPTIMA HEV 2.4 ULEV	15HY24U1
DC1501L						Extract ECU data: RIO 1.6 ULEV	15UB16U1
DC1501M						Extract ECU data: SEDONA 3.3 ULEV	15YP33U1
DC1501N						Extract ECU data: SORENTO 2.4 SULEV	15XM24S1
DC1501O						Extract ECU data: SORENTO 2.4 ULEV	15XM24U1
DC1501P						Extract ECU data: SORENTO 3.3 ULEV	15XM33U1
DC1501Q						Extract ECU data: SOUL 1.6 ULEV	15PS16U1
DC1501R						Extract ECU data: SOUL 2.0 ULEV	15PS20U1
DC1501S						Extract ECU data: SPORTAGE 2.0 ULEV	15SL20U1
DC1501T						Extract ECU data: SPORTAGE 2.4 SULEV	15SL24S1
DC1501U						Extract ECU data: SPORTAGE 2.4 ULEV	15SL24U1

To ensure proper claim processing, enter VIN in DCS and allow the system to auto populate claim fields.

NOTE: VIN inquiry data for this repair is provided for tracking purposes only. Kia retailers should reference DC1501 when accessing the WebDCS system.
