Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Using a screwdriver or remover, remove the center fascia panel (A).

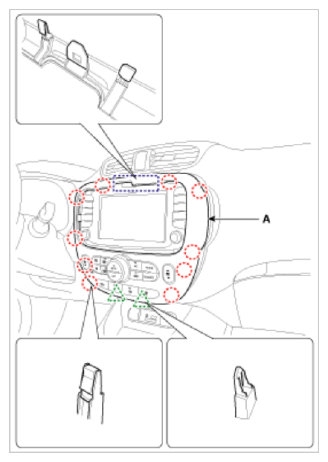

    Fig 1: Center Fascia Panel & Clip Locations
    G09778695Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the A/C & heater controller connectors (A).

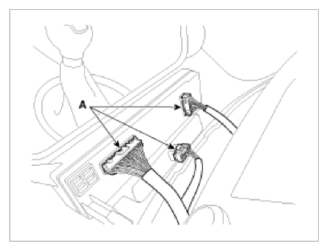

    Fig 2: A/C & Heater Controller Connectors
    G09778696Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the heater & A/C controller unit (A) from the center fascia panel (B) after loosening the mounting screws.

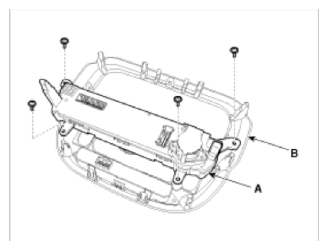

    Fig 3: Heater & A/C Controller Unit And Center Fascia Panel
    G09778697Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips.
