Valve Body Flow
Valve Body Flow
WARNING:
This page is about a different variant/trim than selected.

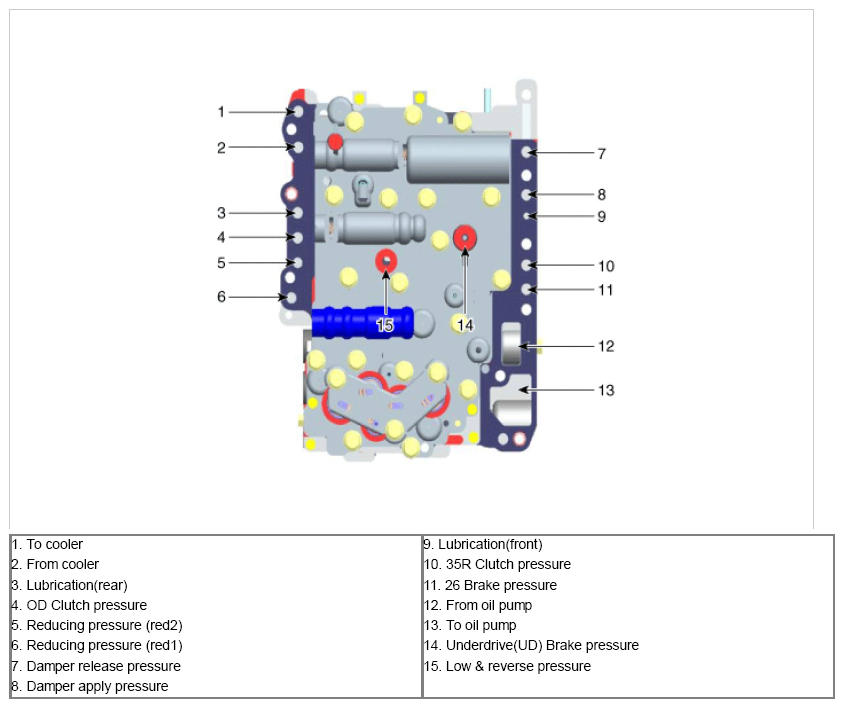

Fig 1: Valve Body Flow Diagram
Courtesy of KIA MOTORS AMERICA, INC.
