Section 12 (Hydraulic System - 2.0L)
>>
Oil Pump
>>
Components And Components Location
>>
Components
Components And Components Location: Components
WARNING:
This page is about a different variant/trim than selected.

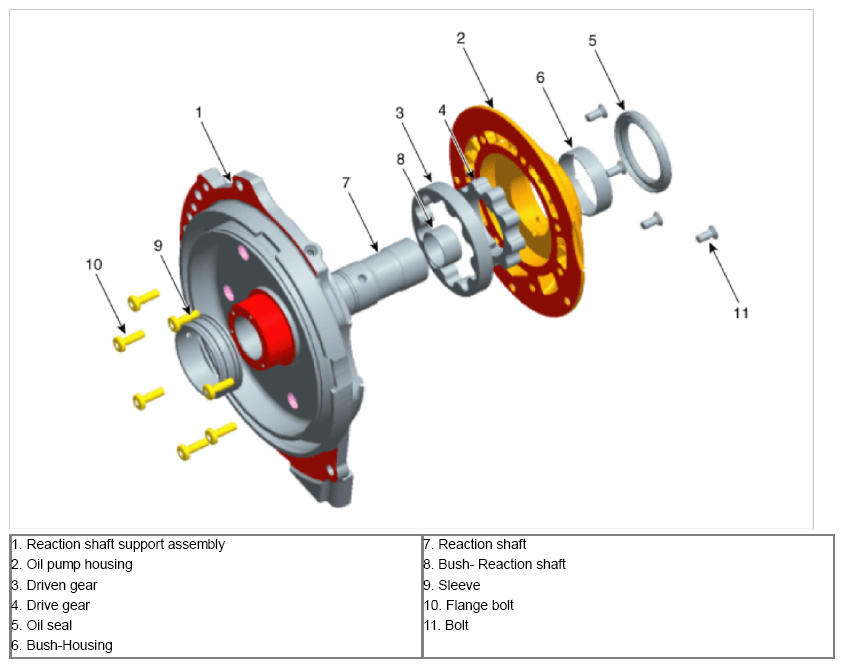

Fig 1: Oil Pump Components Location (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
