Removal and Installation

WARNING: This page is about a different variant/trim than selected.

Remove the engine cover.
(Refer to "ENGINE COVER ")
Drain the engine coolant so its level is below water temperature control assembly.
(Refer to "COOLANT ")
Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")

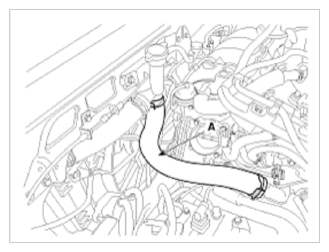

Disconnect the radiator upper hose (A).

Fig 1: Radiator Upper Hose
Courtesy of KIA MOTORS AMERICA, INC.

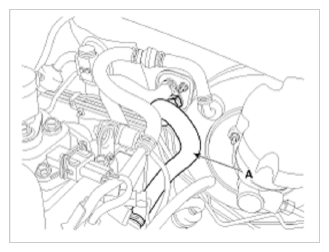

Disconnect the heater hose (A).

Fig 2: Heater Hose
Courtesy of KIA MOTORS AMERICA, INC.

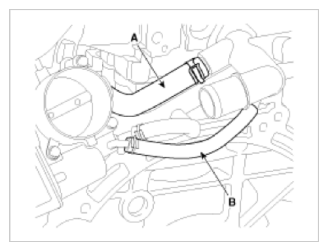

Disconnect the bypass hose (A) and the throttle body coolant hose (B).

Fig 3: Throttle Body Coolant Hose
Courtesy of KIA MOTORS AMERICA, INC.

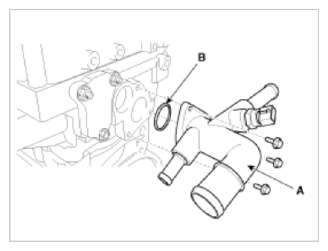

Remove the water temperature control assembly (A) with the O-ring (B).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 4: Water Temperature Control Assembly & O-Ring
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Install a new O-ring.
- Clean surface on the O-ring and install the O-ring after wetting with water.
Install in the reverse order of removal.
Fill the engine coolant.
(Refer to "COOLANT ")
Start engine and check for leaks.
