Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect The Battery Negative Terminal.

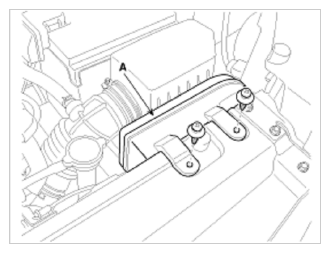

Remove The Air Duct (A).

Fig 1: Removing Air Duct
Courtesy of KIA MOTORS AMERICA, INC.

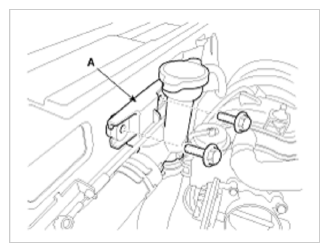

Separate The Filler Neck (A) From The Radiator Upper Member Assembly.
Tightening Torque:

7.8 ~ 11.8 N.M (0.8 ~ 1.2 Kgf.M, 5.8 ~ 8.7 Lb-Ft)

Fig 2: Filler Neck
Courtesy of KIA MOTORS AMERICA, INC.

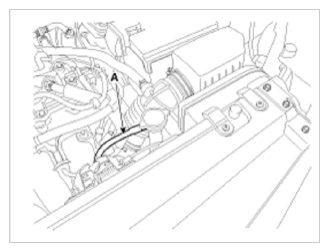

Disconnect The Radiator Reservoir Hose (A).

Fig 3: Radiator Reservoir Hose
Courtesy of KIA MOTORS AMERICA, INC.
Remove The Hood Lower Latch.
(Refer To "Hood Latch ")
Remove The Front Bumper Cover.
(Refer To "Front Bumper Cover ")
Remove The Head Lamps.
(Refer To "Head Lamps ")

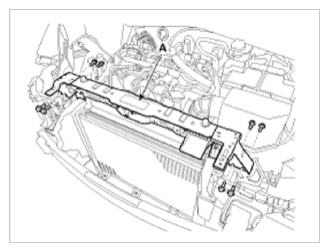

Remove The Radiator Upper Member Assembly (A).
Tightening Torque:

6.9 ~ 10.8 N.M (0.7 ~ 1.1 Kgf.M, 5.1 ~ 8.0 Lb-Ft)

Fig 4: Radiator Upper Member Assembly
Courtesy of KIA MOTORS AMERICA, INC.

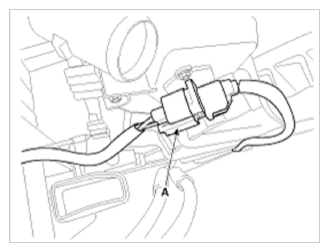

Disconnect The Cooling Fan Connector (A).

Fig 5: Cooling Fan Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove The Engine Room Under Cover.
(Refer To "Engine Room Under Cover ")
Drain The Coolant.
(Refer To "coolant ")

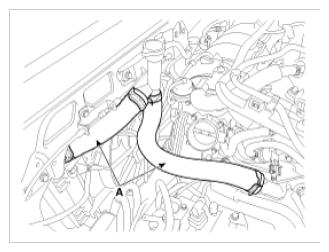

Disconnect The Radiator Upper Hoses (A).

Fig 6: Radiator Upper Hoses
Courtesy of KIA MOTORS AMERICA, INC.

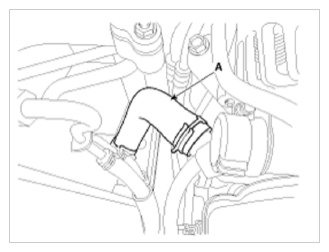

Disconnect The Radiator Lower Hose (A).

Fig 7: Radiator Lower Hose
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect The Automatic Transaxle Fluid (Atf) Cooler Hoses. (A/T Only)

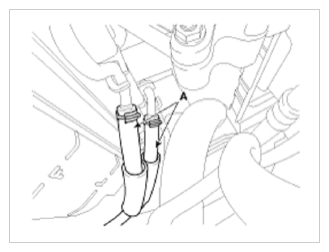

1. Disconnect The Atf Cooler Hoses (A).

  Fig 8: Atf Cooler Hoses
  Courtesy of KIA MOTORS AMERICA, INC.

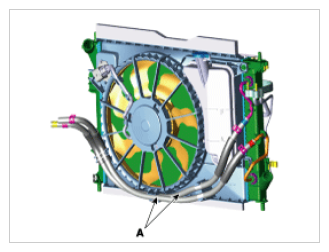

2. Separate The Atf Cooler Hoses (A) From The Holders On The Cooling Fan Assembly.

  Fig 9: Atf Cooler Hoses
  Courtesy of KIA MOTORS AMERICA, INC.

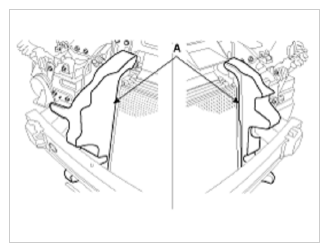

Remove The Air Guards (A).

Fig 10: Removing Air Guards
Courtesy of KIA MOTORS AMERICA, INC.

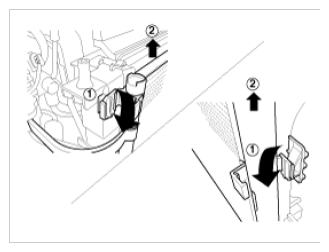

Separate The Condenser From The Radiator. (With A/C)

Fig 11: Removing Condenser From Radiator
Courtesy of KIA MOTORS AMERICA, INC.

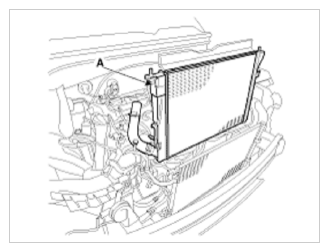

Pull The Radiator (A) Upward And Remove It From Engine Room.

Fig 12: Radiator
Courtesy of KIA MOTORS AMERICA, INC.

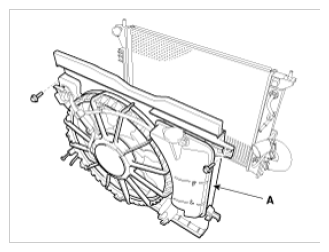

Remove The Cooling Fan Assembly (A) From The Radiator.
Tightening Torque:

4.9 ~ 7.9 N.M (0.5 ~ 0.8 Kgf.M, 3.6 ~ 5.8 Lb-Ft)

Fig 13: Cooling Fan Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Install In The Reverse Order Of Removal.
Fill The Radiator With Coolant.
(Refer To "coolant ")
Start Engine And Check For Leaks.
