Monitor GDS status

WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Connect GDS to Data Link Connector (DLC).
Ignition "ON" (Power Button LED "Red")
Monitor "Diagnostic Trouble Codes (DTC)" with GDS.
If the DTC U0122 status is history, erase the DTC and re-check for MIL ON, if the DTC (Fig 1) status is present, select "Freeze Frame" and monitor "Information Code".

Perform applicable repair procedure for "Information Code" and perform following procedure.

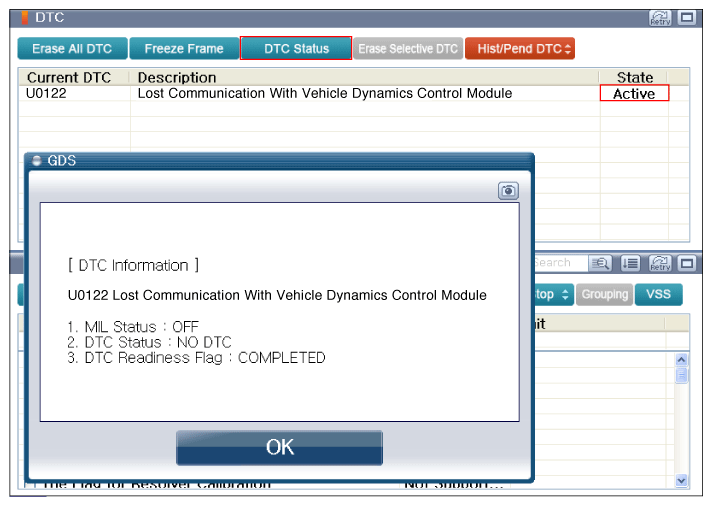

Fig 1: Screen Display - Diagnostic Trouble Code (DTC) With GDS

Courtesy of KIA MOTORS AMERICA, INC.

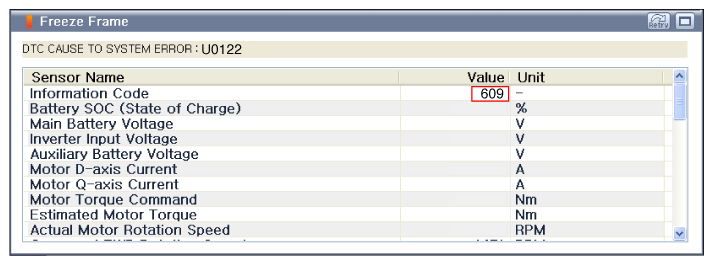

Fig 2: Screen Display - Freeze Frame

Courtesy of KIA MOTORS AMERICA, INC.

Information Code	Check Items
609	Disconnection or short circuit of CAN communication line/VDC system error

Fig.1) Diagnostic Trouble Code(DTC) is shown above

Fig.2) Freeze Frame

Is DTC status displayed as Present?
YES
- In case there is DTC U0001, check and repair this first and then check for DTC lighting again.
- Diagnose VDC system, and if there is DTC, check it first and see if this DTC is erased.
- Go to "WIRING INSPECTION " procedure.
NO
- Fault is intermittent caused by poor contact in the sensor's and/or EPCU's connector or was repaired and EPCU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification Of Vehicle Repair " procedure.
