Monitor GDS status

WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Connect GDS to Data Link Connector (DLC).
Ignition "ON" (Power Button LED "Red")
Monitor "Diagnostic Trouble Codes (DTC)" with GDS.
If the DTC P0A1B status is history, erase the DTC and re-check for MIL ON, if the DTC (Fig 1) status is present, select "Freeze Frame" and monitor "Information Code".

Perform applicable repair procedure for "Information Code" and perform following procedure.

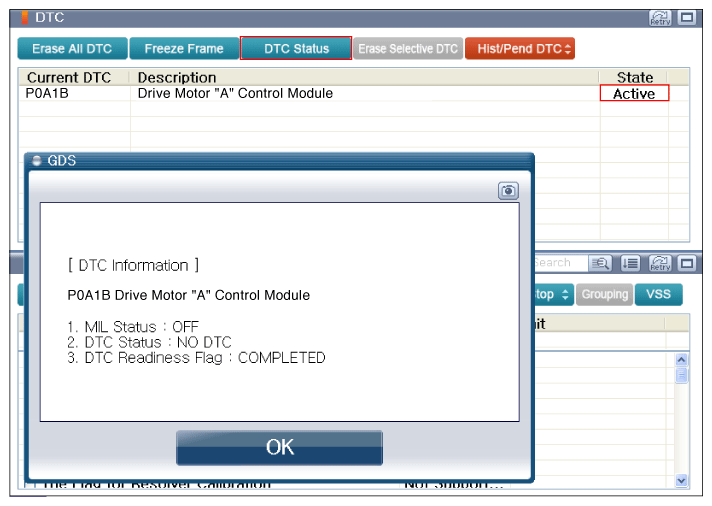

Fig 1: Screen Display - Diagnostic Trouble Code (DTC) With GDS

G10748646

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Screen Display - Freeze Frame (1 Of 11)

G10748647

Courtesy of KIA MOTORS AMERICA, INC.

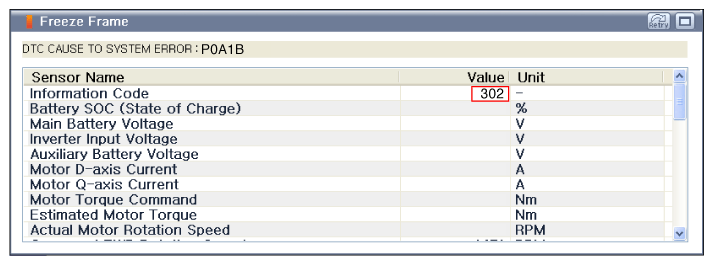

Fig 3: Screen Display - Freeze Frame (2 Of 11)

G10748648

Courtesy of KIA MOTORS AMERICA, INC.

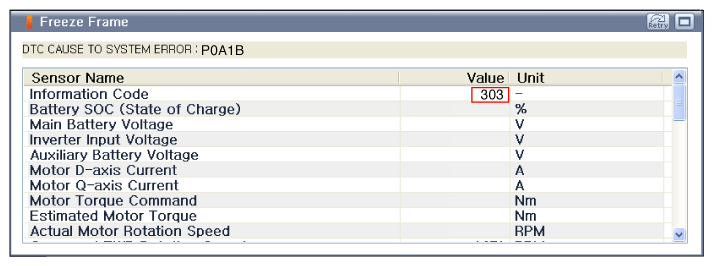

Fig 4: Screen Display - Freeze Frame (3 Of 11)

G10748649

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Screen Display - Freeze Frame (4 Of 11)

G10748650

Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Screen Display - Freeze Frame (5 Of 11)

G10748651

Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Screen Display - Freeze Frame (6 Of 11)

G10748652

Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Screen Display - Freeze Frame (7 Of 11)

G10748653

Courtesy of KIA MOTORS AMERICA, INC.

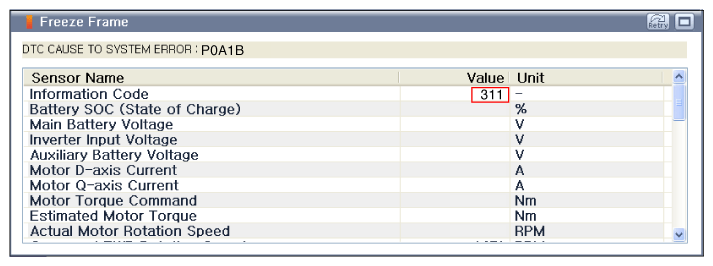

Fig 9: Screen Display - Freeze Frame (8 Of 11)

G10748654

Courtesy of KIA MOTORS AMERICA, INC.

Fig 10: Screen Display - Freeze Frame (9 Of 11)

G10748655

Courtesy of KIA MOTORS AMERICA, INC.

Fig 11: Screen Display - Freeze Frame (10 Of 11)

G10748656

Courtesy of KIA MOTORS AMERICA, INC.

Fig 12: Screen Display - Freeze Frame (11 Of 11)

G10748657

Courtesy of KIA MOTORS AMERICA, INC.

Information Code	Check Items
301	Inside of EPCU
302
303
305
306
308
310
311
313
314
315

Fig.1) Diagnostic Trouble Code(DTC) is shown above

Fig.2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12) Freeze Frame

Is DTC status displayed as Present?
YES
- Carefully re-do this troubleshooting guide steps.
- Problem still occurs, replace, EPCU and then go to "Initialization Of Automatic RESOLVER OFFSET CALIBRATION " procedure.
- Fault is intermittent caused by poor contact in the sensor's and/or EPCU's connector or was repaired and EPCU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification Of Vehicle Repair " procedure.
NO

CAUTION: Perform "Initialization Of Automatic RESOLVER OFFSET CALIBRATION " with GDS in case EPCU or motor is replaced or repaired, and then operate Electric Water Pump (EWP) to recirculate and refill coolant.
