Electric Water Pump Control
WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
- Ignition "OFF", Connect GDS to Data Link Connector (DLC).
- Shift the gear to the P position & Ignition "ON" (Power Button LED "Red"), and select the "Vehicle S/W Management" mode.
- Perform "ELECTRIC WATER PUMP CONTROL " from the additional function.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.

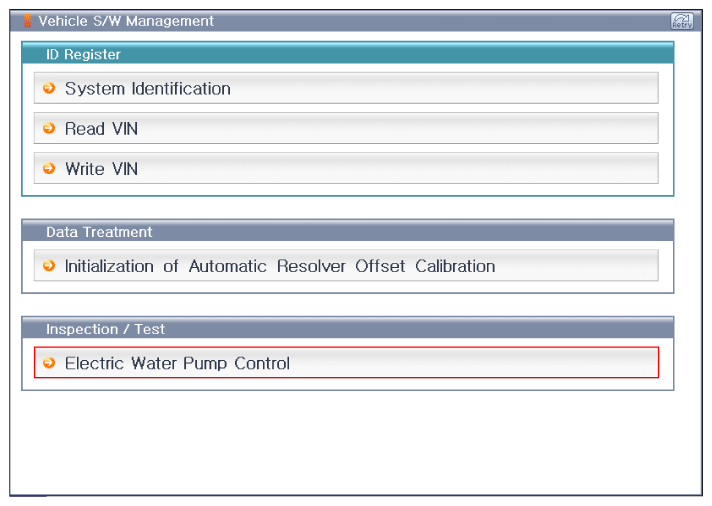

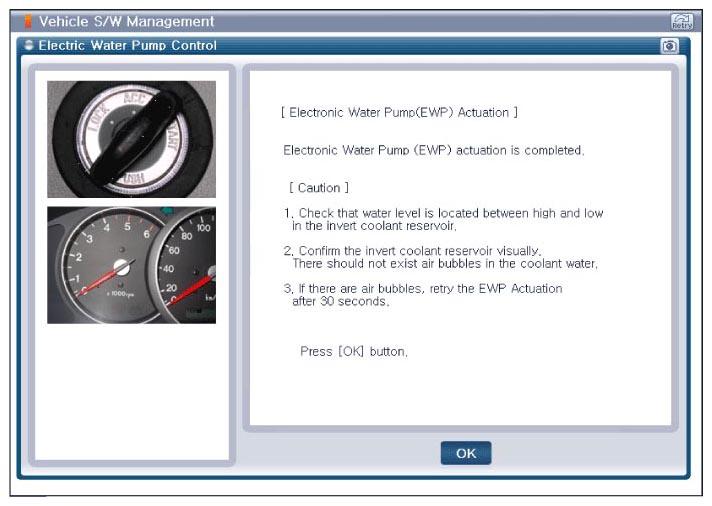

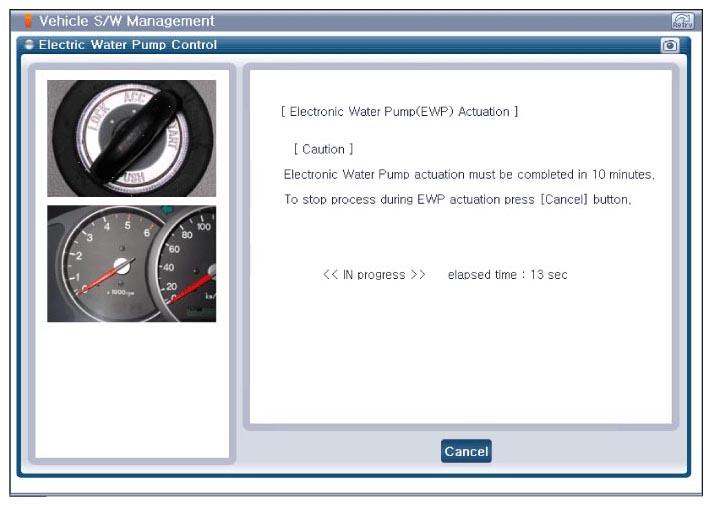

Fig.1, 2, 3, 4) Normal electric water pump operation procedure
- Go to "Verification Of Vehicle Repair " procedure.
