Terminal And Connector Inspection

WARNING: This page is about a different car, the 2017 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
  2. Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
  3. Has a problem been found?

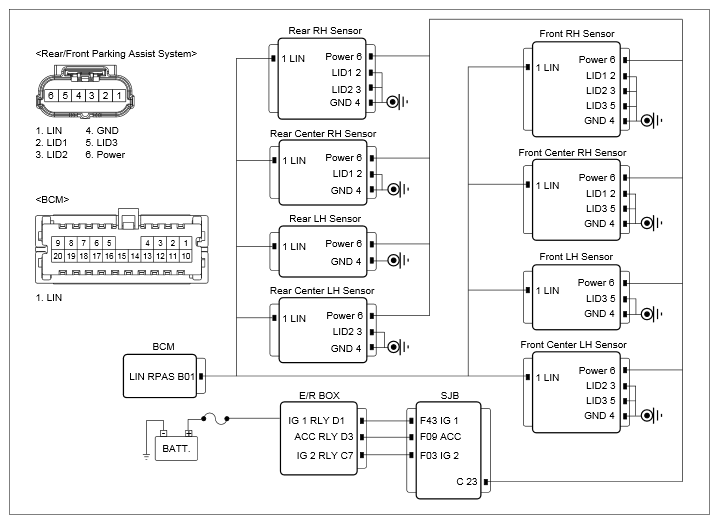

    Fig 1: Rear/Front Parking Assist System Circuit Diagram
    G11934857Courtesy of KIA MOTORS AMERICA, INC.

    YES

    NO
