Signal Waveform & Data

WARNING: This page is about a different car, the 2017 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

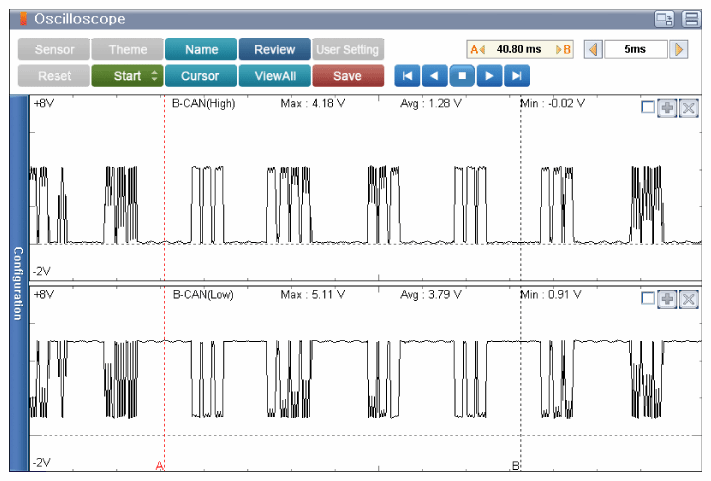

Fig 1: Screen Display - (B-CAN) Low/High Signal Waveform
G11941559Courtesy of KIA MOTORS AMERICA, INC.
