Block Diagram

WARNING: This page is about a different car, the 2016 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

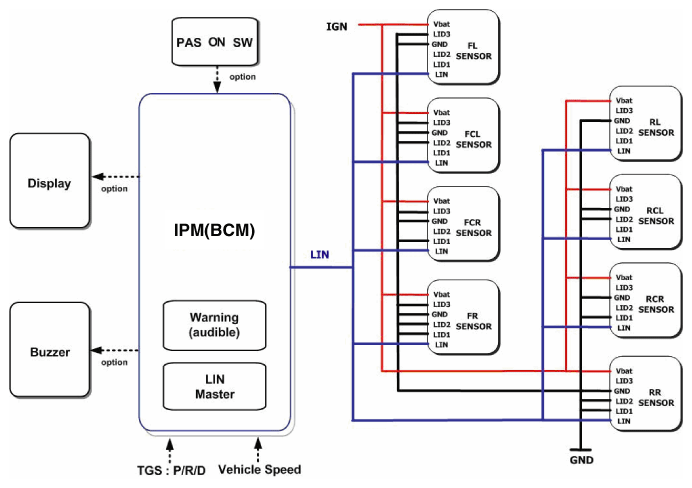

Fig 1: Parking Assist System Block Diagram
G11937925Courtesy of KIA MOTORS AMERICA, INC.
