Circuit Diagram

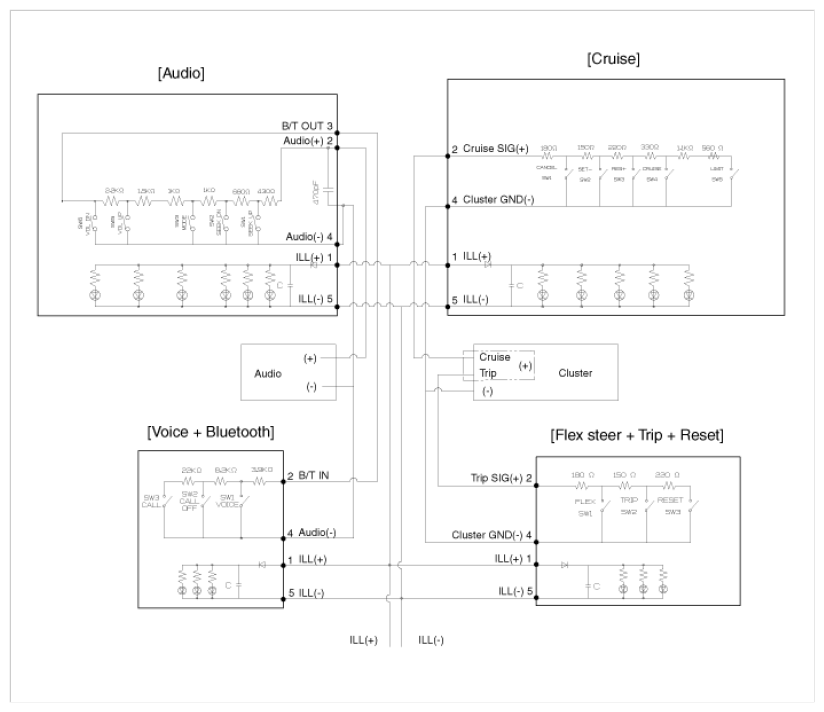

Fig 1: Audio - Circuit Diagram

G09782308

Courtesy of KIA MOTORS AMERICA, INC.

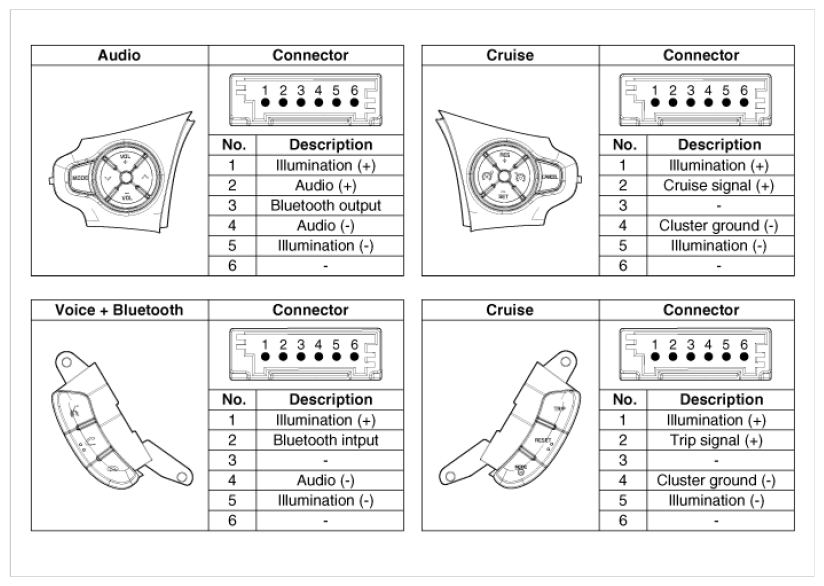

Fig 2: Identifying Audio Connectors

G09782309

Courtesy of KIA MOTORS AMERICA, INC.
