Repair Procedures: Installation: Disassembly

WARNING: This page is about a different variant/trim than selected.

Disconnect the M-terminal (A) on the magnet switch assembly.

Fig 1: Magnet Switch Assembly M-Terminal
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the 2 screws (A), detach the magnet switch assembly (B).

Fig 2: Magnet Switch Assembly And Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

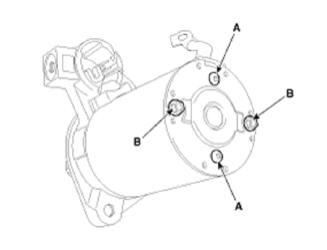

Loosen the brush holder mounting screws (A) and the trough bolts (B).

Fig 3: Brush Holder Mounting Screws & Bolts
Courtesy of KIA MOTORS AMERICA, INC.

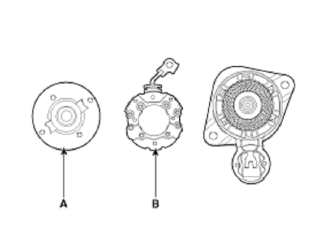

Remove the rear bracket assembly (A) and brush holder assembly (B).

Fig 4: Rear Bracket And Brush Holder Assembly
Courtesy of KIA MOTORS AMERICA, INC.

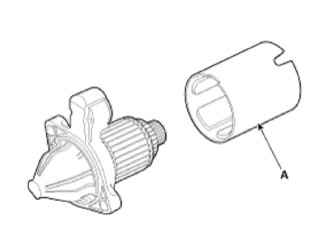

Remove the yoke assembly (A).

Fig 5: Yoke Assembly
Courtesy of KIA MOTORS AMERICA, INC.

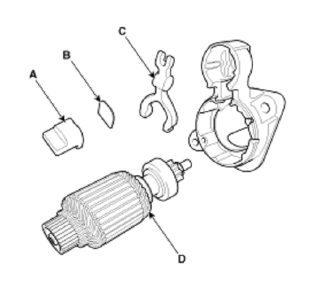

Remove the packing (A), lever plate (B), lever (C), armature assembly (D).

Fig 6: Armature Assembly Components
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Beware the direction of lever (A).

Fig 7: Lever
Courtesy of KIA MOTORS AMERICA, INC.
Press the stopper (A) using a socket (B).

Fig 8: Pressing Stopper Using Socket
Courtesy of KIA MOTORS AMERICA, INC.

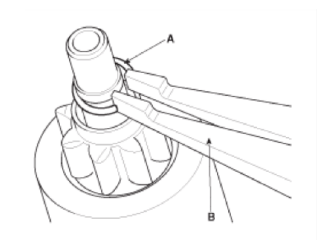

After removing the stop ring (A) using stopper pliers (B).

Fig 9: Removing Stop Ring
Courtesy of KIA MOTORS AMERICA, INC.

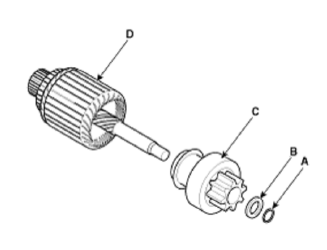

Remove the stop ring (B), stopper (A), overrunning clutch (C) and armature (D).

Fig 10: Overrunning Clutch Components
Courtesy of KIA MOTORS AMERICA, INC.

Information

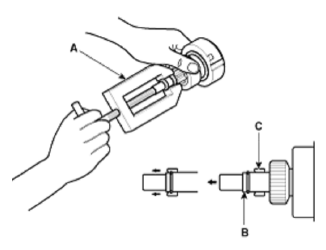

- Using a suitable pulling tool (A), pull the overrunning clutch stopper (C) over the stop ring (B).

  Fig 11: Pulling Overrunning Clutch Stopper Over Stop Ring Using Tool
  Courtesy of KIA MOTORS AMERICA, INC.
